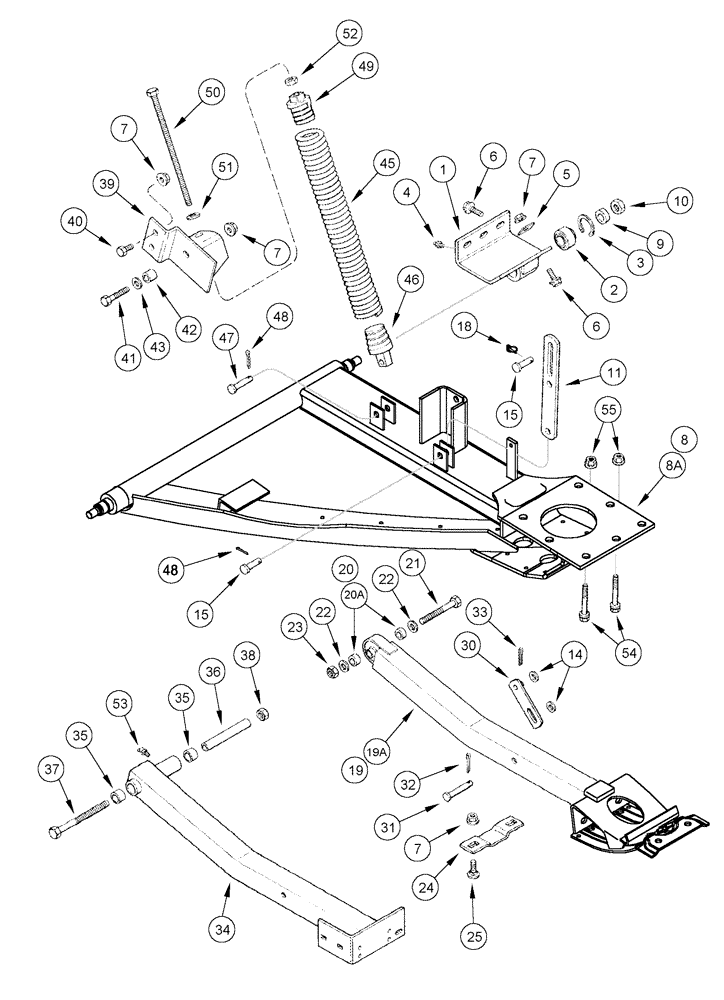

Запчасти Case IH 1020 (09D-05) - MAIN FRAME SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1313979C91

SUPPORT

pivot, outer

1шт.

Includes 2, 3

1шт.

2

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

1шт.

3

86013223

SNAP RING,1.625", Int, #162

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

199408C1

SHIM,28mm OD x 1mm Thk

.032", support

1шт.

6

84209

BOLT,Hex Serr Flg, 1/2" x 1 1/4"

5шт.

7

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

8a

393724A1

SUPPORT

runner LH, Start Serial: CBJ023001

1шт.

9

1316828C1

SPACER

support

1шт.

10

85700693

NUT,5/8" - 11, Gr C

2шт.

11

87450166

STRAP

downstop, Start Serial: CBJ023001

1шт.

14

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

15

86624070

HEADED PIN,12.7mm OD x 38.1mm L

2шт.

18

A33497

LINCH PIN,4.76mm OD Pin

Klik

1шт.

19

1989223C3

SUPPORT

runner, inner

1шт.

No Longer Available, Order 392423A3 Below

1шт.

19a

392423A3

SUPPORT

runner, inner 02

1шт.

20

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

1шт.

20

87305411

SPACER,16.69mm ID x 22.23mm OD x 10.31mm Thk

0.657 x 0.875 x 0.406 Long OCT 05 to

1шт.

20a

441943A1

SPACER,7/8" Tube x .406"

1шт.

Used with 392423A3 Support

1шт.

21

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

1шт.

22

86624152

WASHER,0.66" ID x 1" OD x 0.03" Thk

1шт.

23

85700693

NUT,5/8" - 11, Gr C

1шт.

24

87453016

SUPPORT

plate, runner lockout, Start Serial: CBJ023001

1шт.

25

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

30

1316302C2

ARM

downstop

1шт.

31

86624072

HEADED PIN,12.7mm OD x 69.85mm L

1шт.

32

394818

COTTER PIN,M5 x 25

1шт.

33

80755

COTTER PIN,1/8" OD x 1" L

1шт.

34

1316677C3

SUPPORT

RH runner

1шт.

Includes 35

1шт.

34

1316677C4

SUPPORT

runner RH

1шт.

Includes 35

1шт.

35

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

.887 ID x .875 long

2шт.

36

1316883C2

SPACER

5/8" x 5"

1шт.

37

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

38

85700693

NUT,5/8" - 11, Gr C

OCT, Start Serial: 05

1шт.

39

137928A1

SUPPORT

spring, LH

1шт.

40

87034823

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

41

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1шт.

42

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

1шт.

42

87342195

SPACER,13.8mm ID x 21.3mm OD x 22.2mm L

1/2 x 0.875 Extrastrong Pipe

1шт.

43

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

45

87450162

SPRING

compression .406 x 2 1/2 OD x 16 5/8 long, Start Serial: CBJ023001

1шт.

46

1313104C1

PLUG

support, spring lower

1шт.

47

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1шт.

48

394818

COTTER PIN,M5 x 25

2шт.

49

124366A1

SPECIAL NUT

spring, upper

1шт.

50

124365A1

BOLT,Hex, 5/8" - 11 x 254mm, Gr 5

5/8" x 10" UNC G5

1шт.

51

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

1шт.

52

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

53

87414

LUBE NIPPLE,1/4" - 28

1шт.

54

414077C1

BOLT,Hex, 5/8" - 18 x 1 3/4"

hex flange, special, 5/8 NC x 1 3/4"

2шт.

55

414089C1

FLANGE NUT,5/8" - 18

2шт.
