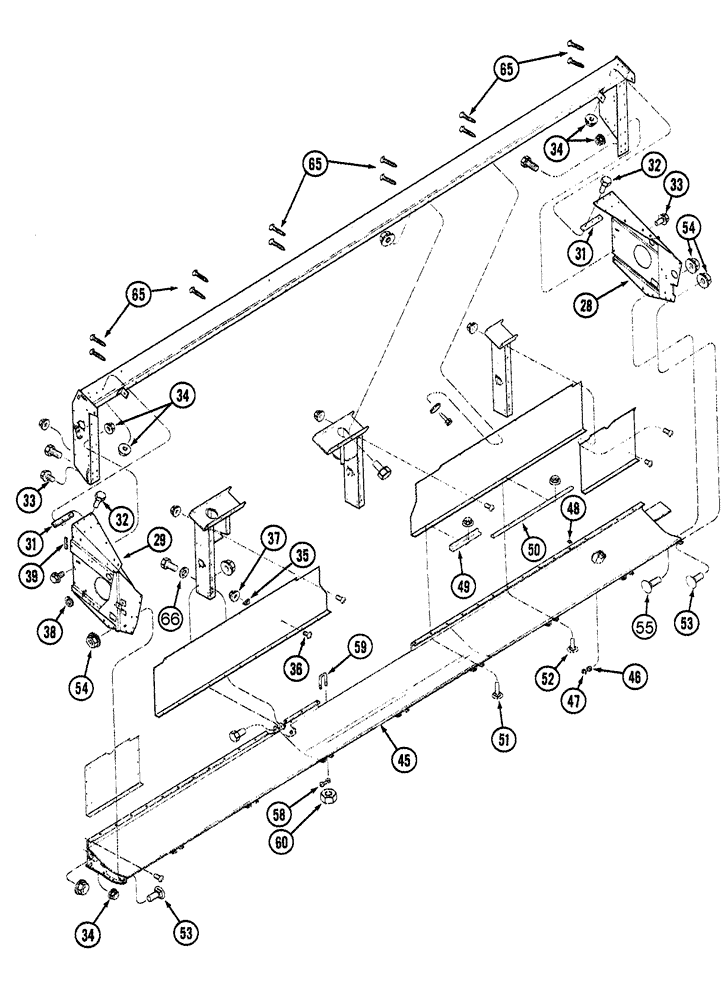

Запчасти Case IH 1020 (09D-04) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS

28

131176A4

SUPPORT

sheet LH end, Start Serial: CBJ023001

1шт.

Includes 31

1шт.

29

130817A4

SUPPORT

endsheet RH

1шт.

Includes 31

1шт.

31

1313966C1

BAR

shim

2шт.

32

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

33

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

12шт.

34

247780

SERRATED NUT,Flg, USR, 3/8"-16

18шт.

35

87450148

ANGLE

shield chain, Start Serial: CBJ023001

4шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

37

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

38

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX

1шт.

Cut From 1330108CX

1шт.

39

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

76 mm (3") long, cut from 1330108CX bulk

1шт.

Cut From 1330108CX

1шт.

45

87500676

BEAM

lower flex 22.5 foot, Start Serial: CBJ023001

1шт.

Includes 46, 47

1шт.

45

87500677

BEAM

lower 25.0 foot, Start Serial: CBJ023001

1шт.

Includes 46, 47

1шт.

45

87500678

BEAM

lower flex 30.0 foot, Start Serial: CBJ023001

1шт.

Includes 46, 47

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

1шт.

47

86013223

SNAP RING,1.625", Int, #162

1шт.

48

87414

LUBE NIPPLE,1/4" - 28

1шт.

49

87450170

ANGLE

, Start Serial: CBJ023001

2шт.

50

87450186

STRIPPER

bar, Start Serial: CBJ023001

1шт.

51

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

52

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

53

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

54

86512371

SERRATED NUT,Flg, USR, 1/2"-13

17шт.

55

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

58

86619254

PLATE,100mm L

bar feeder, Start Serial: CBJ023001

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

60

86520346

NUT,5/8"-11, GB

4шт.

65

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

12шт.

66

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

4шт.

73

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

4шт.
