Запчасти Case IH 1020 (09D-03) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

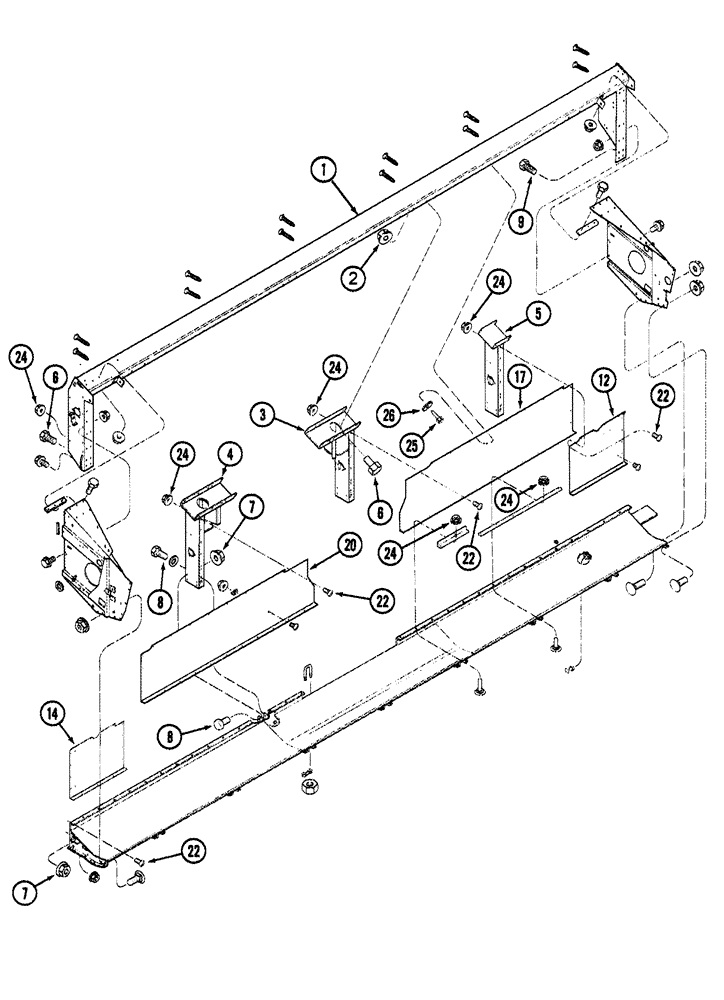

Схема запчастей Case IH 1020 - (09D-03) - MAIN FRAME 22.5, 25.0 AND 30.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS
24
24
24
22
17
7
24
5
1
24
25
14
6
22
3
2
8
7
9
12
8
22
24
26
20
22
4
6

Артикул

Название

Примечание

Количество

1

87500686

BEAM

main 22.5 foot, Start Serial: CBJ023001

1шт.

1

87500687

BEAM

main 25.0 foot, Start Serial: CBJ023001

1шт.

1

87500688

BEAM

main 30.0 foot, Start Serial: CBJ023001

1шт.

2

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

, Start Serial: CBJ023001

40шт.

3

87500671

POST

vertical LH, Start Serial: CBJ023001

1шт.

4

87500672

POST

vertical RH, Start Serial: CBJ023001

1шт.

5

87500673

POST

intermediate LH, Start Serial: CBJ023001

1шт.

5

87500683

POST

intermediate RH, Start Serial: CBJ023001

1шт.

6

87301495

BOLT

5/8 x 1 1/4, G8, Start Serial: CBJ023001

40шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

14шт.

8

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

38шт.

9

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

12

87502074

SHEET

back 22.5 foot LH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

12

87502075

SHEET

back 25' LH

1шт.

12

87502075

SHEET

back 25' LH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

12

87502076

SHEET

back 30.0 foot LH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

14

87502077

SHEET

back 22.5 foot RH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

14

87502079

SHEET

back 25.0 foot RH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

14

87502080

SHEET

back 30.0 foot RH, Start Serial: CBJ023001

1шт.

Includes Decal

1шт.

17

1326062C93

SHIELD

backsheet center LH

1шт.

Includes Decal

1шт.

20

1326063C94

SHIELD

backsheet center RH

1шт.

Includes Decal

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

1шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

Выбрано товаров: 34
