Запчасти Case IH 1020 (09D-02) - MAIN FRAME 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS

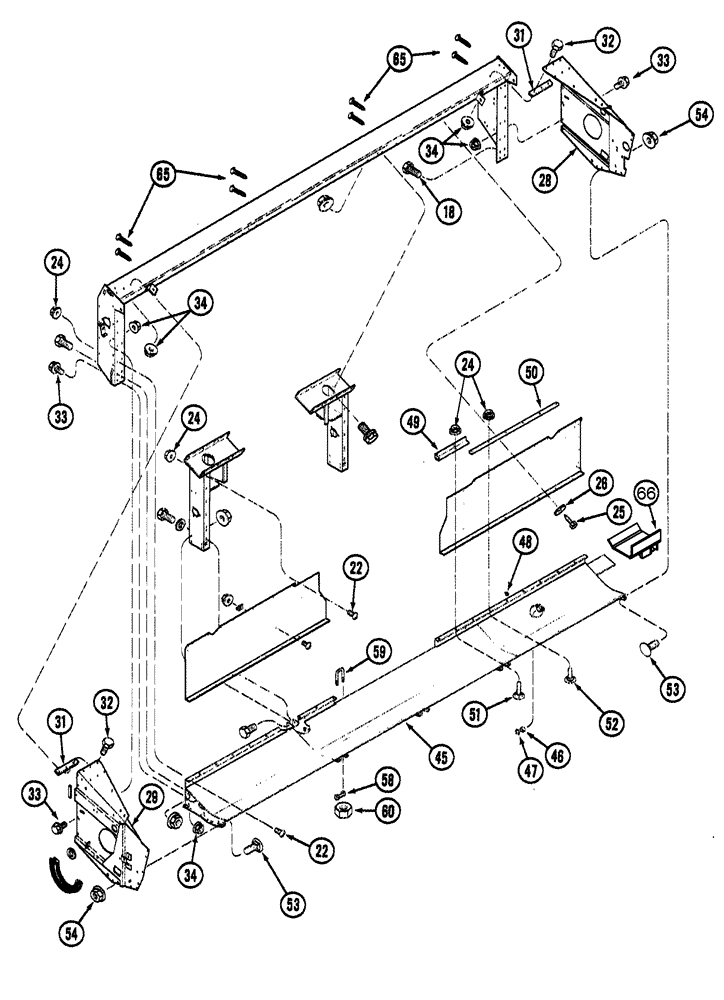

Схема запчастей Case IH 1020 - (09D-02) - MAIN FRAME 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (PART 2 OF 2) (09) - CHASSIS/ATTACHMENTS
52
48
33
51
31
32
54
34
50
24
54
65
66
33
33
18
25
53
59
31
28
22
60
47
29
22
34
32
34
24
46
65
58
53
24
45
49
26

Артикул

Название

Примечание

Количество

18

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

1шт.

24

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

25

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

1шт.

26

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

1шт.

28

131176A4

SUPPORT

sheet LH end, Start Serial: CBJ023001

1шт.

Includes 31

1шт.

29

130817A4

SUPPORT

endsheet RH

1шт.

Includes 31

1шт.

31

1313966C1

BAR

shim

2шт.

32

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

6шт.

33

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

12шт.

34

247780

SERRATED NUT,Flg, USR, 3/8"-16

24шт.

45

1307500C95

BEAM

lower, 15.0 foot

1шт.

Includes 46, 47

1шт.

45

1326806C5

BEAM ASSY.

lower 16.5 foot

1шт.

Includes 46, 47

1шт.

45

87500674

BEAM

lower flex 17.5 foot, Start Serial: CBJ023001

1шт.

Includes 46, 47

1шт.

45

87500675

BEAM

lower flex 20.0 foot, Start Serial: CBJ023001

1шт.

Includes 46, 47

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

1шт.

47

86013223

SNAP RING,1.625", Int, #162

1шт.

48

87414

LUBE NIPPLE,1/4" - 28

1шт.

49

87450170

ANGLE

, Start Serial: CBJ023001

2шт.

50

87450186

STRIPPER

bar, Start Serial: CBJ023001

1шт.

51

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

52

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

53

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

54

232-5318

FLANGE NUT,Flg, 1/2"-13

4шт.

58

86619254

PLATE,100mm L

bar feeder, Start Serial: CBJ023001

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" 5/8"-11, 4.6" ID Height, 2.18" ID Width

2шт.

60

86520346

NUT,5/8"-11, GB

4шт.

65

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

66

1313980C91

PIVOT

inner

1шт.

Выбрано товаров: 35
