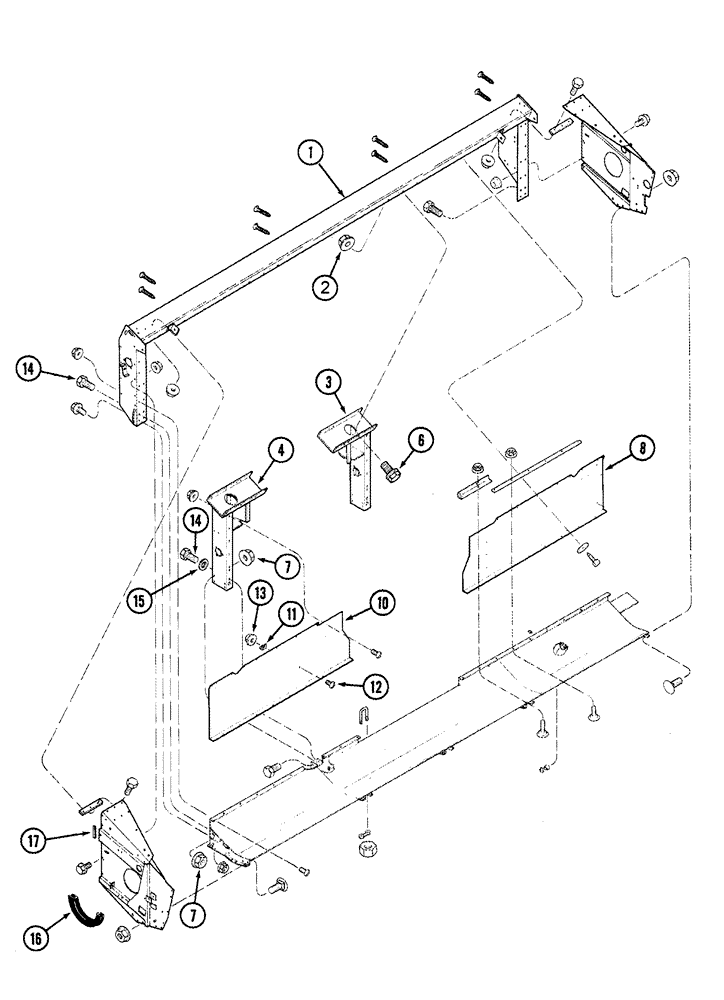

Запчасти Case IH 1020 (09D-01) - MAIN FRAME 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (PART 1 OF 2) (09) - CHASSIS/ATTACHMENTS

1

125995A3

BEAM

main 15.0 foot

1шт.

1

125997A3

BEAM

main 16.5 foot

1шт.

1

87500684

BEAM

main 17.5 foot, Start Serial: CBJ023001

1шт.

1

87500685

BEAM

main 20.0 foot, Start Serial: CBJ023001

1шт.

2

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

, Start Serial: CBJ023001

12шт.

3

87500671

POST

vertical LH, Start Serial: CBJ023001

1шт.

4

87500672

POST

vertical RH, Start Serial: CBJ023001

1шт.

6

87301495

BOLT

5/8 x 1 1/4, G8, Start Serial: CBJ023001

12шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

18шт.

8

1326056C93

SHIELD

back with decal, LH 15.0 foot

1шт.

Includes Decal

1шт.

8

1326802C3

SUPPORT

back with decal LH

1шт.

Includes Decal

1шт.

8

1326058C93

SHIELD

backsheet 17.5 foot LH

1шт.

Includes Decal

1шт.

8

1326060C93

SHIELD

backsheet 20.0 foot LH

1шт.

Includes Decal

1шт.

10

1326057C94

SHIELD

back with decal, RH 15.0 foot

1шт.

Includes Decal

1шт.

10

1326803C4

SUPPORT

back with decal RH

1шт.

Includes Decal

1шт.

10

1326059C94

SHIELD

backsheet 17.5 foot RH

1шт.

Includes Decal

1шт.

10

1326061C94

SHIELD

backsheet 20.0 foot RH

1шт.

Includes Decal

1шт.

11

87450148

ANGLE

shield chain, Start Serial: CBJ023001

4шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

13

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

14

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

20шт.

15

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

2шт.

16

135370A1

PROTECTION STRIP

194 mm (7-5/8 in), Cut From 1330108CX

1шт.

17

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

76 mm (3") long, cut from 1330108CX bulk

1шт.
