Запчасти Case IH 1020 (09C-19) - AUGER ASSEMBLY - FULL FINGERED BSN CBJ033000 (09) - CHASSIS/ATTACHMENTS

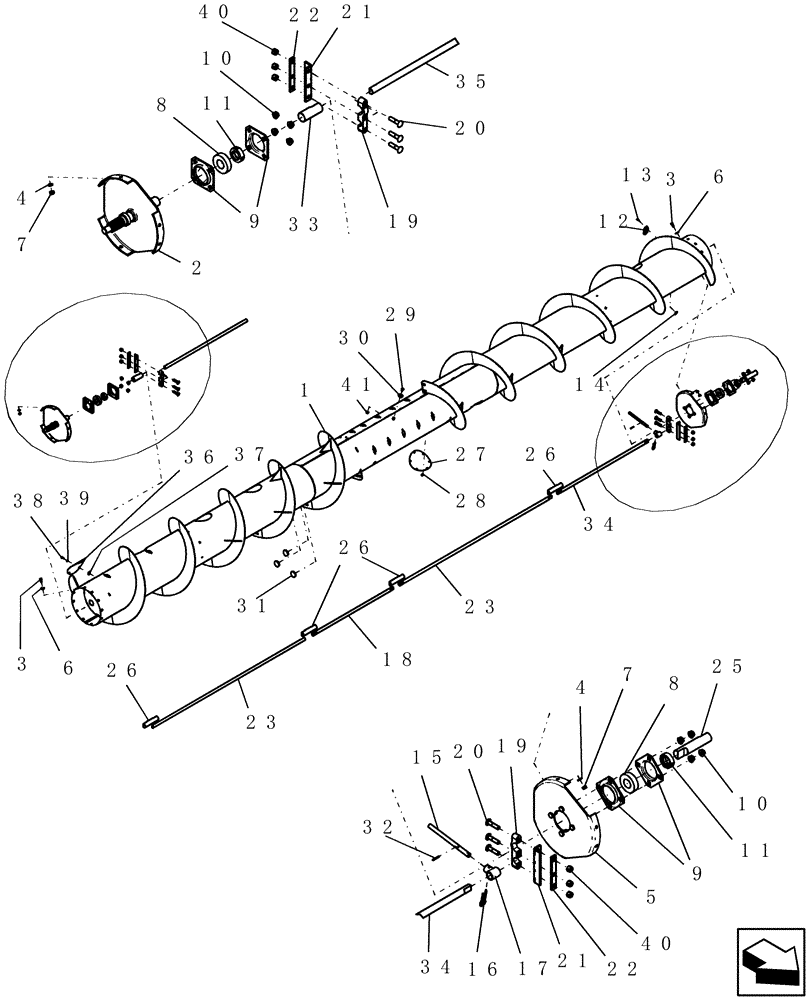

Схема запчастей Case IH 1020 - (09C-19) - AUGER ASSEMBLY - FULL FINGERED BSN CBJ033000 (09) - CHASSIS/ATTACHMENTS
34
6
18
2
9
33
5
39
15
7
12
3
26
20
14
19
32
21
10
23
8
16
25
29
41
26
22
9
34
22
35
11
4
19
4
8
26
28
3
13
21
11
10
31
17
6
40
27
30
36
7
20
40
23
38
37
1

Артикул

Название

Примечание

Количество

0

87519880

AUGER

25.0 foot full fingered with extension

1шт.

1

87395785

AUGER

30.0 foot full fingered

1шт.

2

435404A1

SHAFT

auger drive

1шт.

3

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

12шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

5

1307256C1

RETAINER

auger LH

1шт.

6

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

7

280136

NUT,3/8"-16, G8

12шт.

8

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

auger shaft

6шт.

9

1307583C1

FLANGED BEARING

bearing 80 mm 4 bolt

12шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

24шт.

11

455112R11

COLLAR

locking, bearing, with set screw

6шт.

12

1307259C2

GUIDE

finger

30,32шт.

30 Used on 25' Model, 32 Used on 30' Model

1шт.

13

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

60,64шт.

60 Used on 25' Model, 64 Used on 30' Model

1шт.

14

127550

NUT,Tee, 1/4"-20

60,64шт.

60 Used on 25' Model, 64 Used on 30' Model

1шт.

15

440430A1

FINGER

auger

30,32шт.

30 Used on 25' Model, 32 Used on 30' Model

1шт.

16

185309A1

HAIR PIN COTTER

Quick Attachable

30,32шт.

30 Used on 25' Model, 32 Used on 30' Model

1шт.

17

1308425C1

HUB

auger finger

30,32шт.

30 Used on 25' Model, 32 Used on 30' Model

1шт.

18

435252A1

SHAFT

auger finger main 993 mm

1шт.

19

1326467C1

CLAMP

finger shaft

10шт.

20

280504

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

30шт.

21

1320698C1

ANGLE

auger finger shaft

10шт.

22

87441009

PLATE

auger tube

10шт.

23

435254A1

SHAFT

auger finger LH end 1877 mm

2шт.

25

444038A1

SHAFT

auger finger, adjusting, 175 mm

1шт.

26

444036A1

SHAFT

auger finger 162 mm

4шт.

27

87450151

COVER

auger drum

2шт.

28

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

12шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

30

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

31

353-417

PLUG,Dome, 2.000" hole, Nylon

6шт.

32

38-1822

PIN,1/8" OD x 1-3/8" L, Slotted

30,32шт.

30 Used on 25' Model, 32 Used on 30' Model

1шт.

33

435255A1

SHAFT

auger finger RH end 100 mm

1шт.

34

87500981

SHAFT

auger finger 1115 mm

1шт.

Used on 25' model

1шт.

34

435254A1

SHAFT

auger finger LH end 1877 mm

1шт.

Used on 30' model

1шт.

35

87501827

SHAFT

auger finger 1010 mm

1шт.

Used on 25' model

1шт.

35

435253A1

SHAFT

auger finger RH end 1772 mm

1шт.

Used on 30' model

1шт.

36

87017844

COVER

10,12шт.

10 Used on 25' Model, 12 Used on 30' Model

1шт.

37

86014250

SPRING NUT,M6 x 1.0

20,24шт.

20 Used on 25' Model, 24 Used on 30' Model

1шт.

38

120100

BOLT,M6 x 20mm, Cl 8.8

20,24шт.

20 Used on 25' Model, 24 Used on 30' Model

1шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20,24шт.

20 Used on 25' Model, 24 Used on 30' Model

1шт.

40

86992215

LOCK NUT,1/2"-13, GC

30шт.

41

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

Выбрано товаров: 58
