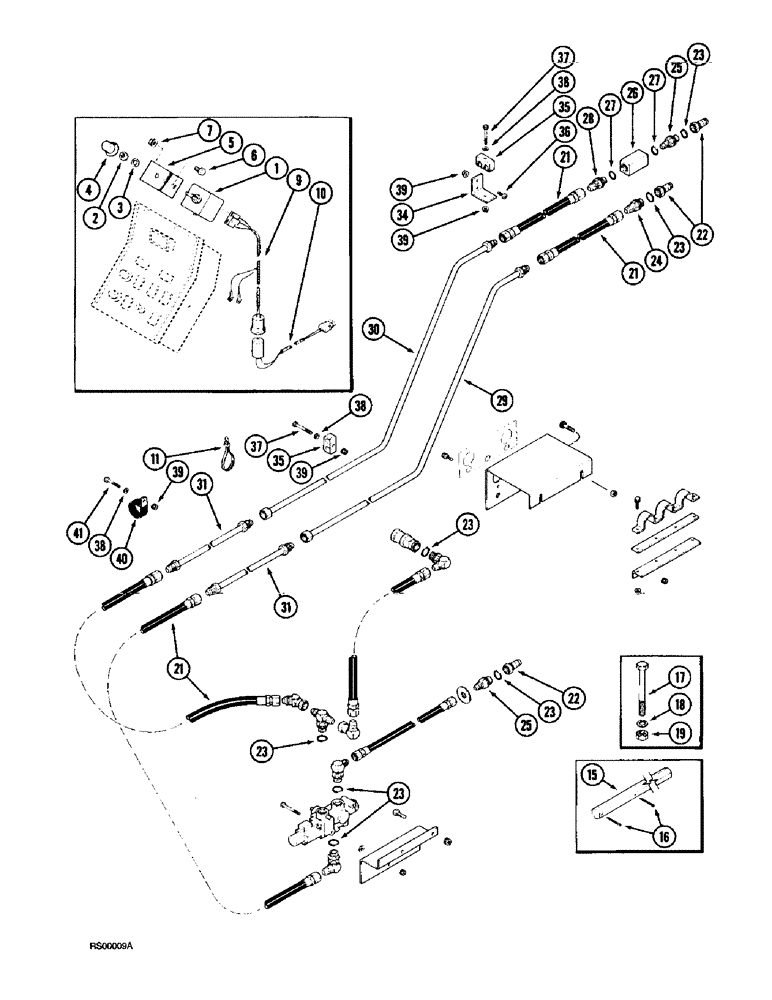

Запчасти Case IH 1015 (8-10) - HEADER ADAPTER ATTACHMENT, TO 1482 COMBINE (35) - HYDRAULIC SYSTEMS

1968694C1

KIT

Attachment Consists Of : 1 - 73

1шт.

1

245653C2

SWITCH

Includes : 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Washer

1шт.

4

1345235C1

BUTTON

Knob

1шт.

5

1968595C1

SUPPORT

Bracket

1шт.

6

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 x 1/2

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

9

1964591C1

HARNESS

1шт.

10

1964592C1

HARNESS

1шт.

11

306132C1

CABLE TIE,14.5" L

Strap 14 in

1шт.

15

1326888C1

SHAFT

Jackshaft

1шт.

16

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

17

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

425-1010

NUT,5/8"-11, G5

1шт.

21

1327823C1

HOSE

1676 mm (66 in)

4шт.

22

1272399C2

QUICK MALE COUPLING

Coupling, 7/8 NF, Self-Sealing, Male

3шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

7шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Adapter 7/8 fl x Or

1шт.

25

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

26

1304235C1

VALVE

Check

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

28

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

29

1330580C1

HYD TUBE

Tube Pressure

1шт.

30

1330581C1

HYD TUBE

Tube Return

1шт.

31

1330230C2

TUBE

Rear

2шт.

34

1968622C1

SUPPORT

Bracket

1шт.

35

1330242C1

CLAMP

4шт.

36

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

37

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

38

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

39

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

40

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4

1шт.

41

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4 x 1-3/4

1шт.
