(8-08) - HYDRAULIC SELF-SEALING COUPLINGS

Запчасти Case IH 1015 (8-08) - HYDRAULIC SELF-SEALING COUPLINGS (35) - HYDRAULIC SYSTEMS

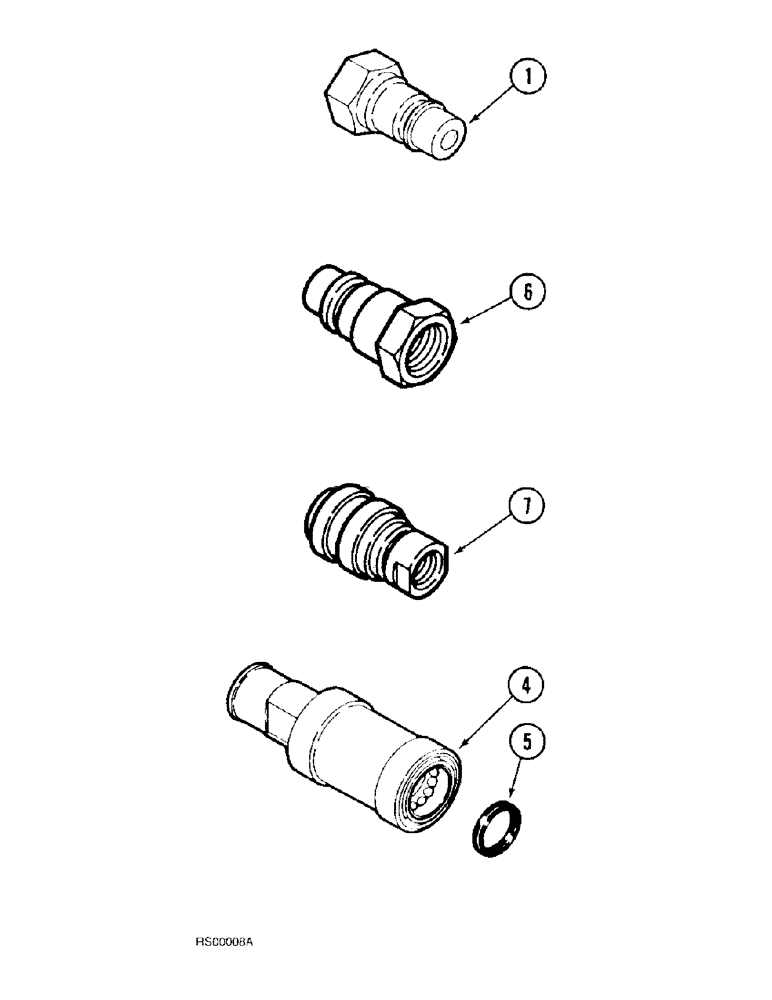

Схема запчастей Case IH 1015 - (8-08) - HYDRAULIC SELF-SEALING COUPLINGS (35) - HYDRAULIC SYSTEMS
5
4
6
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1272399C2

QUICK MALE COUPLING

Coupling, 7/8 NF Self-Sealing, Male Alternate with : 395149R1

1шт.

4

1282338C91

COUPLING, QUICK, FEM

Coupling, 7/8 NF Self-Sealing, Female Includes : 5

1шт.

5

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

Ring

1шт.

6

1272399C2

QUICK MALE COUPLING

Coupling, 7/8 NF Self-Sealing, Male

1шт.

7

187563C1

COUPLING, QUICK, FEM

Coupling, 9/16 NF Female

1шт.

Выбрано товаров: 5
