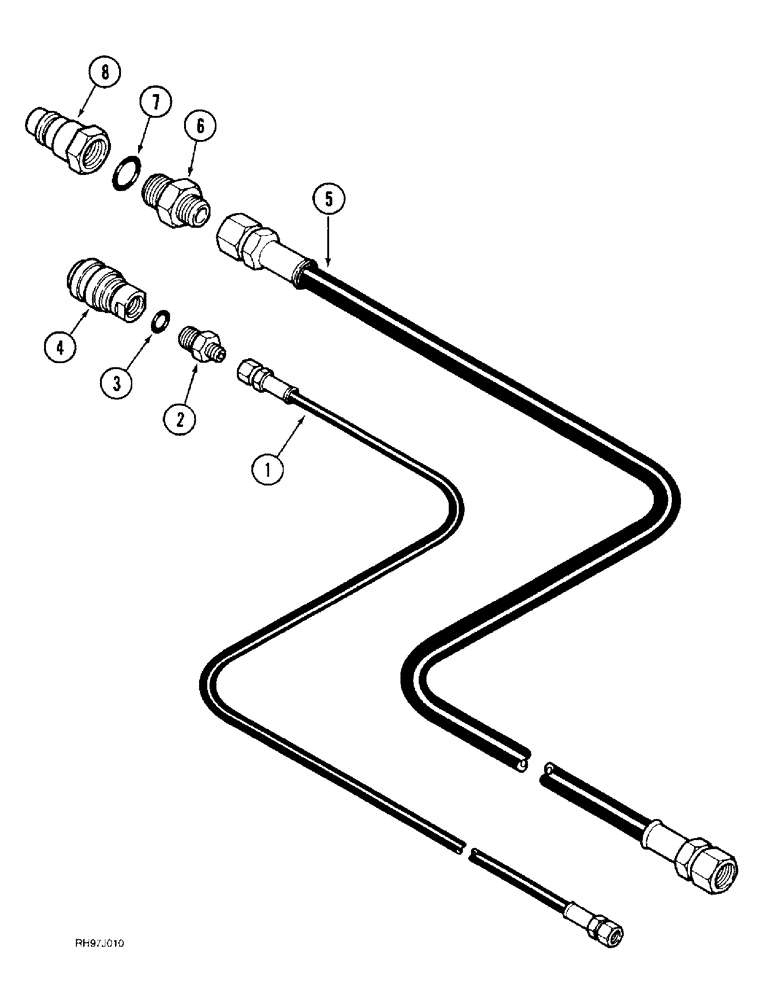

Запчасти Case IH 1015 (8-06) - HEADER TO COMBINE CONNECTING HOSES, 1420, 1440, 1460, AND 1480 COMBINE (35) - HYDRAULIC SYSTEMS

1326596C91

PACKAGE

Kit, Attachment Consists Of : 1 - 8

1шт.

1

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

1727 mm (68 in) Reel Lift

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Adapter, 9/16 fl x Or Incl. : 3

1шт.

4

187563C1

COUPLING, QUICK, FEM

Coupling, 9/16 NF See Page : 8-9

1шт.

5

D51685

HOSE

1676 mm (66 in) Reel Drive

2шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, Incl. 7 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1272399C2

QUICK MALE COUPLING

Coupling, 7/8 NF, Self-Sealing, Male, See Page : 8-9

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
