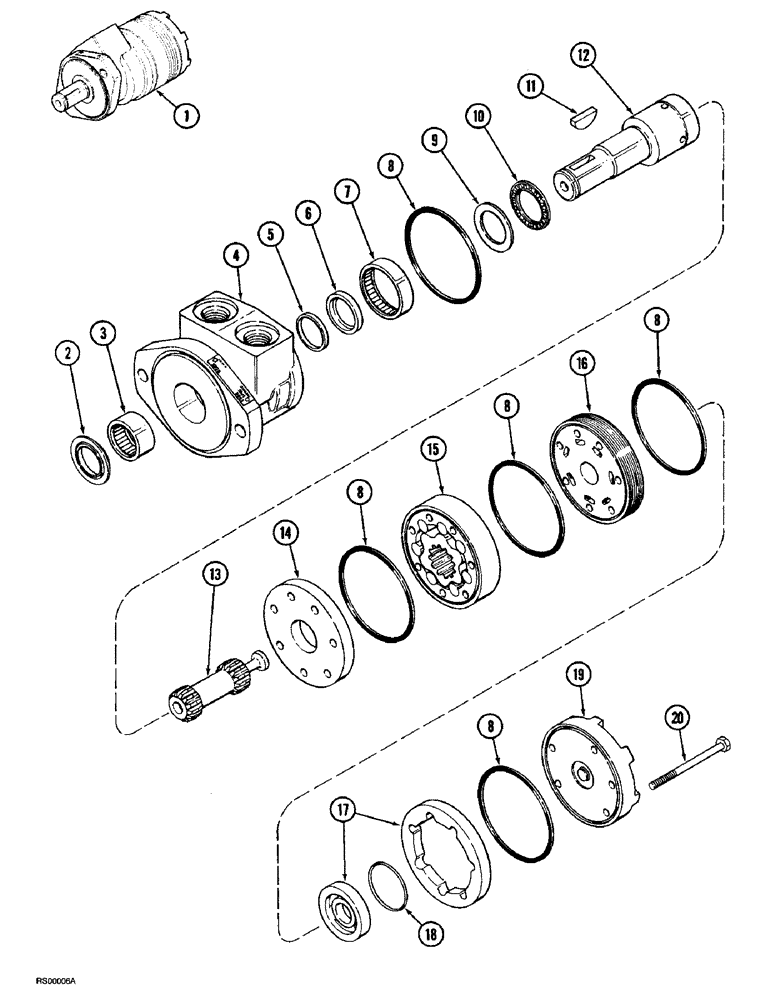

Запчасти Case IH 1015 (8-04) - PICKUP DRIVE, HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

1

1986619C1

MOTOR, HYDRAULIC

Motor Assy Consists Of : 2 - 20

1шт.

1986619C1R

REMAN-HYD MOTOR

1015, S/N JJC0310001 & Aft.

1шт.

1986619C1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Seal

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

11

NSS

NOT SOLD SEPARAT

Key

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft

1шт.

13

NSS

NOT SOLD SEPARAT

Link

1шт.

14

NSS

NOT SOLD SEPARAT

Plate

1шт.

15

NSS

NOT SOLD SEPARAT

Rotor

1шт.

16

NSS

NOT SOLD SEPARAT

Manifold

1шт.

17

NSS

NOT SOLD SEPARAT

Commutator

1шт.

18

NSS

NOT SOLD SEPARAT

Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Cover

1шт.

20

NSS

NOT SOLD SEPARAT

Bolt

5шт.

1980817C1

SEAL KIT

Kit, Repair Consists Of : 2, 5, 6, 8, 18

1шт.
