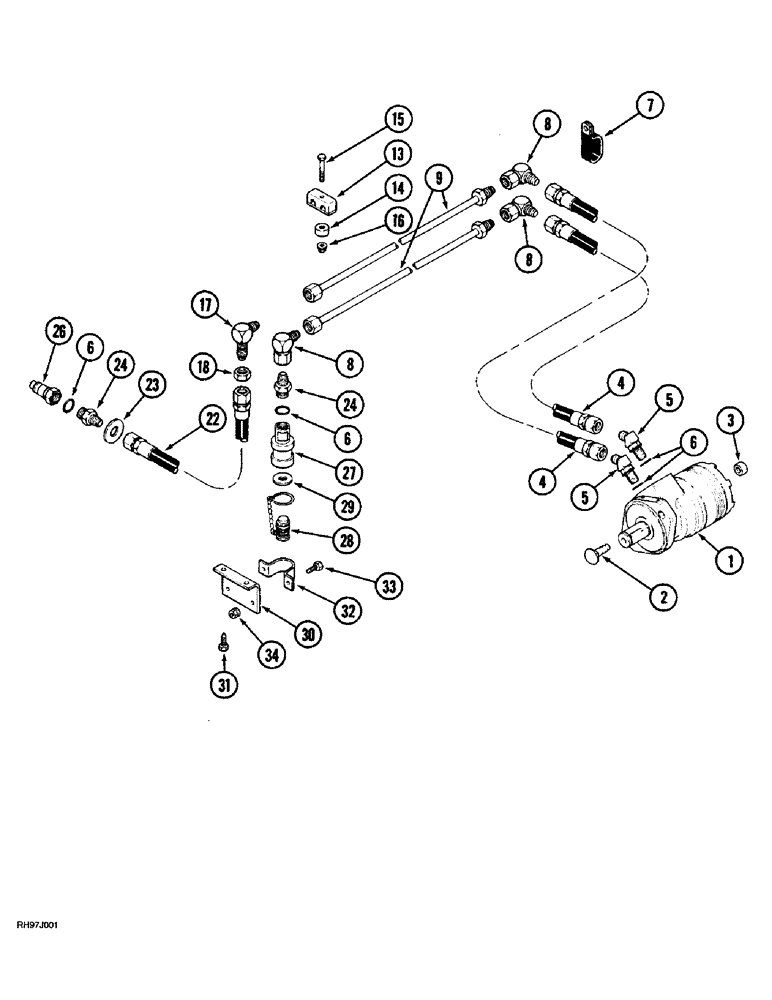

Запчасти Case IH 1015 (8-02) - HYDRAULIC SYSTEM, PICKUP DRIVE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

Motor Assy See Page : 8-5

1шт.

2

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

Bolt 1/2 x 1-3/4

2шт.

3

231-4118

LOCK NUT,1/2"-13, GB

Nut, Lock 1/2

2шт.

4

179411C1

HOSE

1549 mm (61 in)

2шт.

5

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

45 3/4 fl x 7/8 Or

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

7

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

3шт.

9

1316441C1

TUBE,0.5" OD, 663 mm Length

11 Ft

2шт.

9

1316443C1

TUBE,0.5" OD, 943 mm Length

13 Ft

2шт.

9

1316442C1

TUBE,0.5" OD, 239 mm Length

Offset Discharge

2шт.

13

1301178C1

CLAMP

1/2

1шт.

14

1326572C1

SPACER

1шт.

15

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

16

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

1шт.

17

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

18

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

22

1316829C1

HOSE

965 mm (38 in)

1шт.

23

1345266C1

WASHER

1шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

26

1272399C2

QUICK MALE COUPLING

Coupling, 7/8 NF, Self-Sealing, Male, See Page : 8-9

1шт.

27

1282338C91

COUPLING, QUICK, FEM

Coupling, 7/8 NF See Page : 8-9

1шт.

28

1954133C1

PLUG

Plug Includes : 29

1шт.

29

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

30

1316779C1

SUPPORT

Angle

1шт.

31

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

Screw 5/16 x 3/4

2шт.

32

1321398C1

CLAMP

1шт.

33

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.
