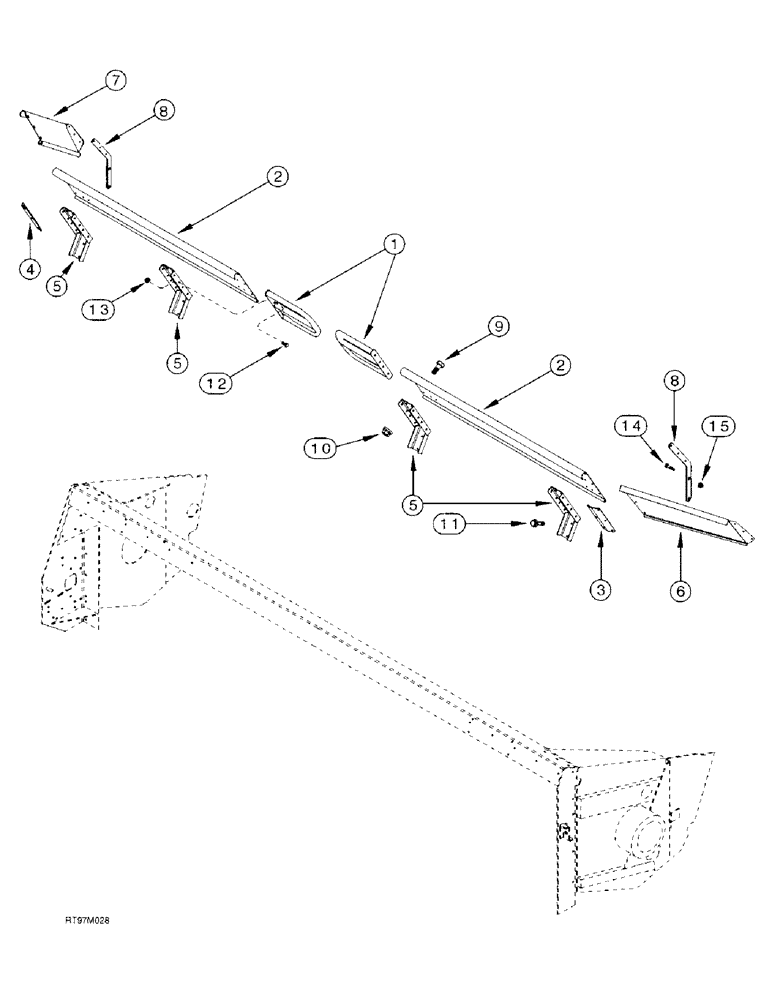

Запчасти Case IH 1015 (9-44) - BACKSHEET EXTENSION SHIELDS, TALL CROP ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

255416A2

TUBE,349, 276 mm Length

2шт.

2

255948A2

SHEET

483 mm (19 in) 11 Ft

2шт.

2

257147A2

SHIELD

Sheet, 762 mm (30 in) 13 Ft

2шт.

3

257154A1

BRACE

Corner Right Hand

1шт.

4

257153A1

BRACE

Corner Left Hand

1шт.

5

257152A2

BRACE

4шт.

6

284494A1

SHEET

Corner Right Hand

1шт.

7

284492A1

SHEET

Corner Left Hand

1шт.

8

257155A1

BRACE

Corner Front

2шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

42шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

42шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

8шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

Bolt 3/8 x 3/4

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

14

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

Bolt 3/8 x 1-1/4

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.
