(9-40) - FEEDER FACE DEFLECTOR, 1420, 1440, 1460 AND 1480 COMBINE

Запчасти Case IH 1015 (9-40) - FEEDER FACE DEFLECTOR, 1420, 1440, 1460 AND 1480 COMBINE (58) - ATTACHMENTS/HEADERS

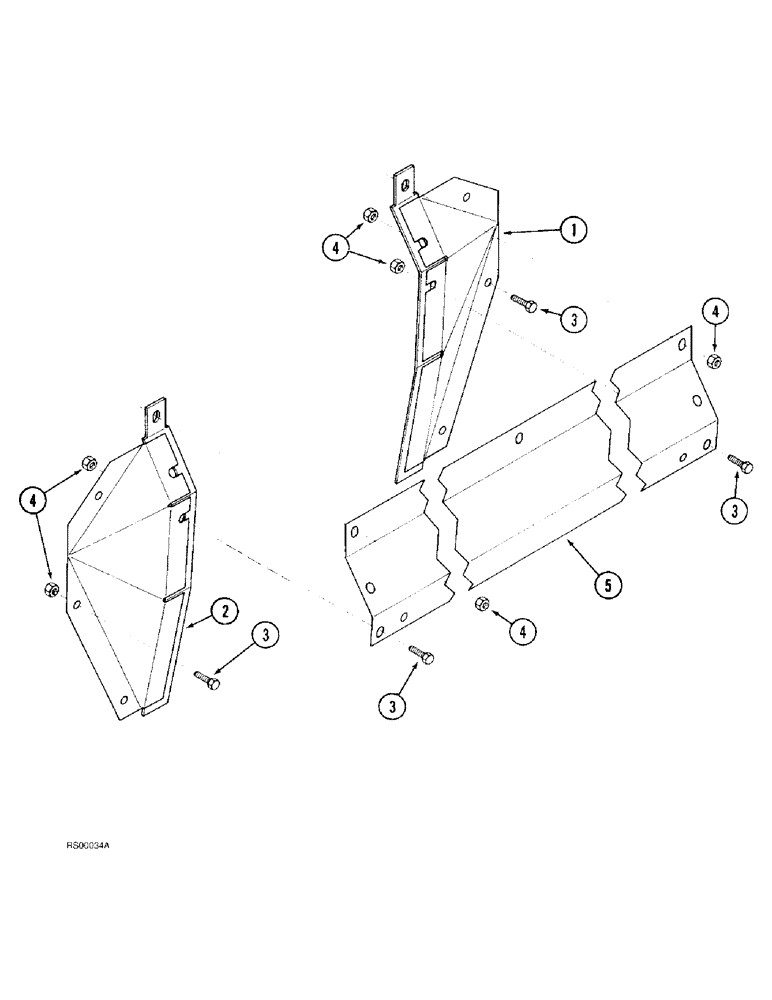

Схема запчастей Case IH 1015 - (9-40) - FEEDER FACE DEFLECTOR, 1420, 1440, 1460 AND 1480 COMBINE (58) - ATTACHMENTS/HEADERS
3
4
4
5
3
4
3
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1326598C91

KIT

Attachment Consists Of : 1 - 5

1шт.

1

184853C1

DEFLECTOR

1шт.

2

184854C1

DEFLECTOR

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

11шт.

5

181669C1

SHIELD

Cover #1480 (1)

1шт.

5

1319220C1

SHIELD

Cover #1420 (1), 1440 (1), 1460 (1)

1шт.
