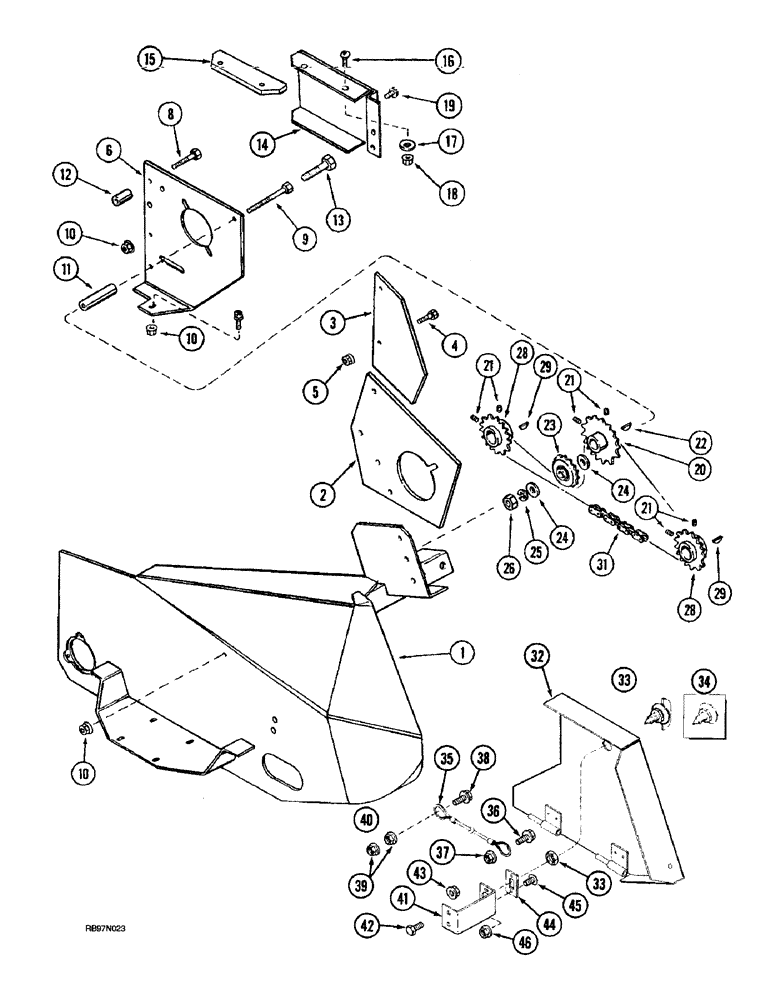

Запчасти Case IH 1015 (9-36) - PICKUP DRIVE (58) - ATTACHMENTS/HEADERS

1

1316550C3

SUPPORT

1шт.

2

1316790C1

LARGE PLATE

Plate

1шт.

3

1326347C2

COVER

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

1316794C3

SUPPORT

1шт.

7

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1

1шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

1шт.

10

231-5146

FLANGE NUT,3/8"-16

5шт.

11

1316797C2

SPACER

3/8 x 3-3/8

1шт.

12

97457R1

SPACER,3/8" X-Strng Pipe x 1 9/16"

3/8 x 1-15/32

1шт.

13

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

14

1316796C2

SHIELD

1шт.

15

249680A1

SEAL

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

17

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

19

409-7612

BOLT,3/8"-16 x 1.09" OAL

Flange 3/8 x 3/4

2шт.

20

1316824C2

SPROCKET ASSY.

Sprocket 21T

1шт.

20

1316616C2

SPROCKET ASSY.

Sprocket 32T

1шт.

21

484-1386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

Setscrew 3/8 x 3/8 NF

6шт.

22

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

594706R91

SPROCKET ASSY.,15T

Sprocket 15T

1шт.

24

495-51066

WASHER,9/16" x 1 1/4" x .1"

21/32 x 1-1/4 x 3/32

7шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

28

1316916C2

SPROCKET ASSY.

Sprocket 17T

2шт.

29

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

31

NSS

NOT SOLD SEPARAT

Chain Assy With 21 T Sprocket Use 103 links of 1791D, 1 x 241-1315, 2 x 241-1715 With 32 T Sprocket Use 106 links of 1791D, 1 x 241-1315

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

Chain No. 50, 10 ft

1шт.

241-1315

LINK, CONNECTING

No. 50

1шт.

241-1715

LINK,15.88mm Pitch

Link, Offset No. 50

1шт.

32

295128A1

SHIELD

1шт.

33

292503A1

LATCH

Fastener, 1/4 Turn

1шт.

34

292505A1

LATCH

Australia and Europe

1шт.

35

126396A1

CABLE

1шт.

36

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

Bolt 1/4 x 3/4

1шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

38

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

41

280834A1

SUPPORT

Bracket

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

44

292504A1

CASE

Catch

1шт.

45

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

46

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.
