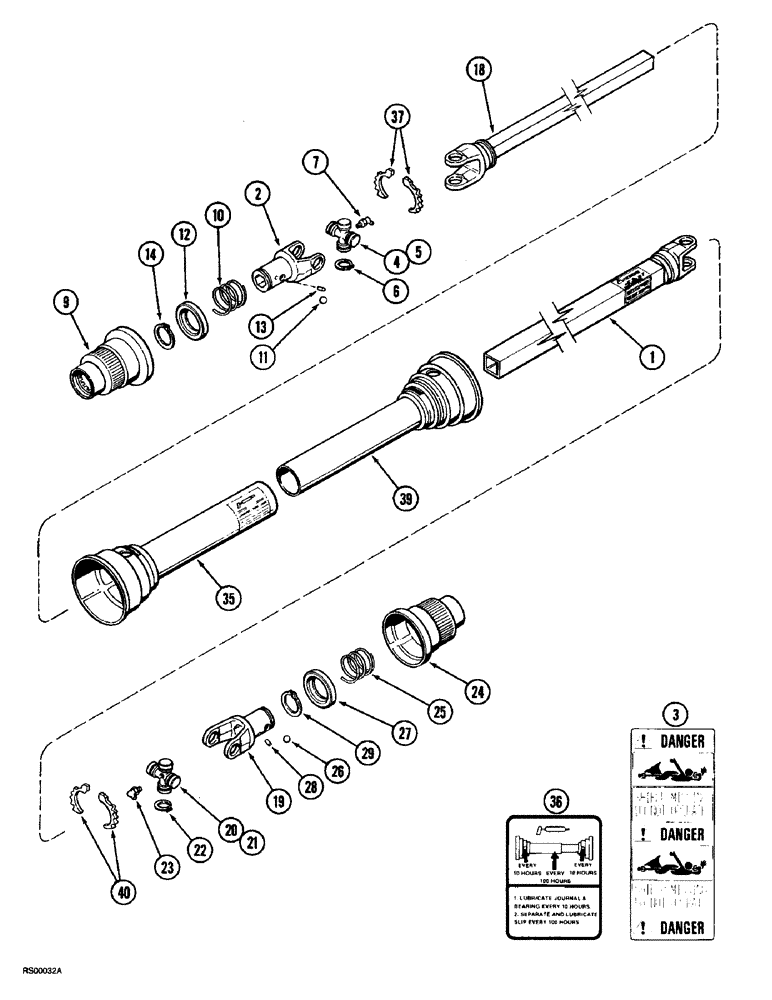

Запчасти Case IH 1015 (9-34) - DRIVE SHAFT, HAYES-DANA (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1316372C92
SHAFT
Assy Consists Of : 1 - 40
1шт.
1326742C91
SHAFT
Assy Consists Of : 1 - 7
1шт.
1
NSS
NOT SOLD SEPARAT
Shaft
1шт.
2
NSS
NOT SOLD SEPARAT
Yoke
1шт.
3
REF
INSTRUCTION
Decal See Page : 9-47, 9-49
1шт.
757443
U-JOINT SPIDER
Kit, Repair Consists Of : 4 - 7
1шт.
4
NSS
NOT SOLD SEPARAT
Joint, Universal
1шт.
5
NSS
NOT SOLD SEPARAT
Bearing, Needle
4шт.
6
1986059C1
SNAP RING
Ring, Retaining 0.058 in
4шт.
6
606177R1
SNAP RING
Ring, Retaining 0.078 in
4шт.
7
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
Fitting, Grease 65 deg, 1/8 PT x 7/8
1шт.
9
1326580C1
COLLAR
1шт.
10
1326585C1
SPRING
1шт.
11
211-1016
BALL,12.7mm OD, Gr 24
1/2; 24,CRS
3шт.
12
1326583C1
COLLAR
Race
1шт.
13
37-138
DOWEL,3/16" x 1/2"
Pin, Dowel 3/16 x 1/2
3шт.
14
100-11187
SNAP RING,#187, Ext
Ring, Snap, #187, Ext
1шт.
1326745C91
SHAFT
Assy Consists Of : 18 - 29
1шт.
18
NSS
NOT SOLD SEPARAT
Shaft
1шт.
19
NSS
NOT SOLD SEPARAT
Yoke
1шт.
757443
U-JOINT SPIDER
Kit, Repair Consists Of : 20 - 23
1шт.
20
NSS
NOT SOLD SEPARAT
Joint, Universal
1шт.
21
NSS
NOT SOLD SEPARAT
Bearing, Needle
4шт.
22
1986059C1
SNAP RING
Ring, Retaining 0.058 in
4шт.
22
606177R1
SNAP RING
Ring, Retaining 0.078 in
4шт.
23
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
Fitting, Grease 65 deg, 1/8 PT x 7/8
1шт.
24
1326580C1
COLLAR
1шт.
25
1326585C1
SPRING
1шт.
26
211-1016
BALL,12.7mm OD, Gr 24
1/2; 24,CRS
3шт.
27
1326583C1
COLLAR
Race
1шт.
28
37-138
DOWEL,3/16" x 1/2"
Pin, Dowel 3/16 x 1/2
3шт.
29
100-11187
SNAP RING,#187, Ext
Ring, Snap, #187, Ext
1шт.
1326748C91
PROTECTOR
Shield Assy Outer Includes : 35 - 37
1шт.
35
NSS
NOT SOLD SEPARAT
Shield
1шт.
36
REF
INSTRUCTION
Decal See Page : 9-47
1шт.
37
1980787C1
BEARING ASSY
Bearing, Support
2шт.
1326751C91
PROTECTOR
Shield Assy Inner Includes : 39 - 40
1шт.
39
NSS
NOT SOLD SEPARAT
Shield
1шт.
40
1980787C1
BEARING ASSY
Bearing, Support
2шт.
Выбрано товаров: 39
