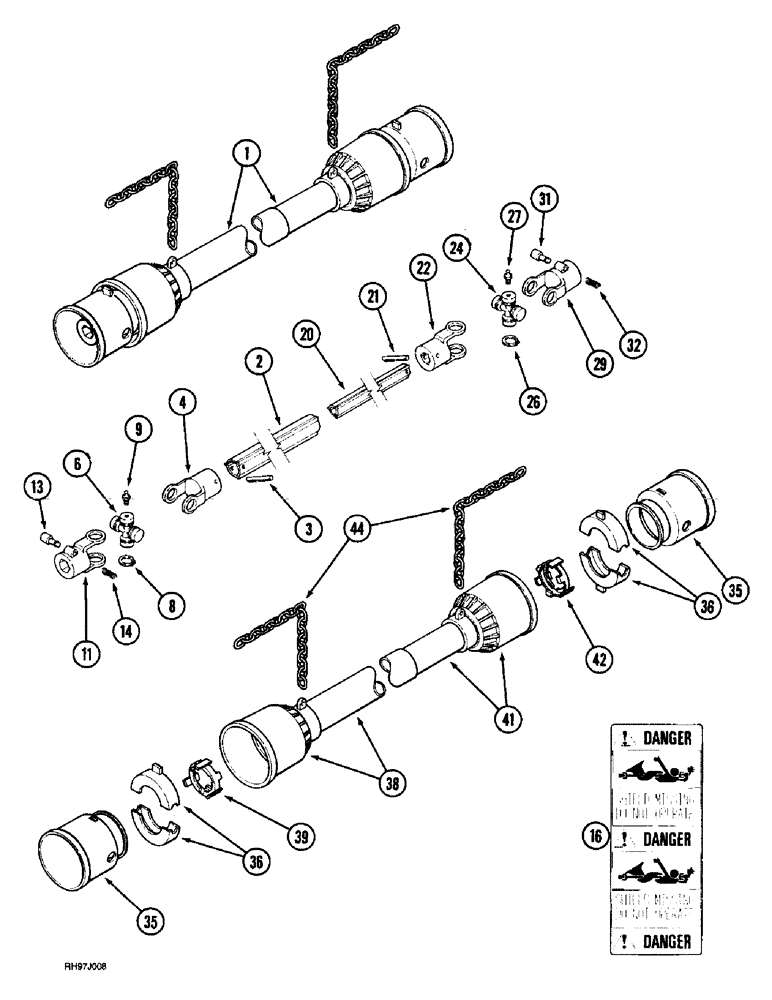

Запчасти Case IH 1015 (9-30) - DRIVE SHAFT, BONDIOLI AND PAVESI (58) - ATTACHMENTS/HEADERS

1

1316372C92

SHAFT

Assy Consists Of : 2 - 44

1шт.

1326657C91

SHAFT

Assy Outer Consists Of : 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft

1шт.

3

Q2937

LOCK PIN,M8 x 55, Slotted

PIN, LOCK, M8 x 55, Slotted

1шт.

4

NSS

NOT SOLD SEPARAT

Yoke

1шт.

1330586C1

REPAIR KIT

Kit Consists Of : 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

8

933916R1

SNAP RING,M24, Int

Ring, Retaining

4шт.

9

933756R1

LUBE NIPPLE,M6 x 1

Fitting, Grease

2шт.

11

NSS

NOT SOLD SEPARAT

Yoke

1шт.

1311950C1

KIT

Repair Consists Of : 13 - 14

1шт.

13

NSS

NOT SOLD SEPARAT

Pin

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

16

REF

INSTRUCTION

Decal See Page : 9-47, 9-49

1шт.

1326622C91

SHAFT

Assy Inner Consists Of : 20 - 32

1шт.

20

NSS

NOT SOLD SEPARAT

Shaft

1шт.

21

838-5845

LOCK PIN,M8 x 45, Slotted

Pin, Roll 8 x 45 mm

1шт.

22

NSS

NOT SOLD SEPARAT

Yoke

1шт.

1330586C1

REPAIR KIT

Kit Consists Of : 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

26

933916R1

SNAP RING,M24, Int

Ring, Retaining

4шт.

27

933756R1

LUBE NIPPLE,M6 x 1

Fitting, Grease

2шт.

29

NSS

NOT SOLD SEPARAT

Yoke

1шт.

1311950C1

KIT

Repair Consists Of : 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

Pin

1шт.

32

NSS

NOT SOLD SEPARAT

Spring

1шт.

1326625C91

SHIELD

Assy Yoke Includes : 35, 36

2шт.

35

NSS

NOT SOLD SEPARAT

Cone

1шт.

36

NSS

NOT SOLD SEPARAT

Collar

1шт.

38

1326626C91

SHIELD

Assy Outer Shaft Includes : 39

1шт.

39

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

41

1326629C91

PROTECTOR

Shield Assy Inner Shaft Includes : 42

1шт.

42

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

44

1326632C1

CHAIN

2шт.
