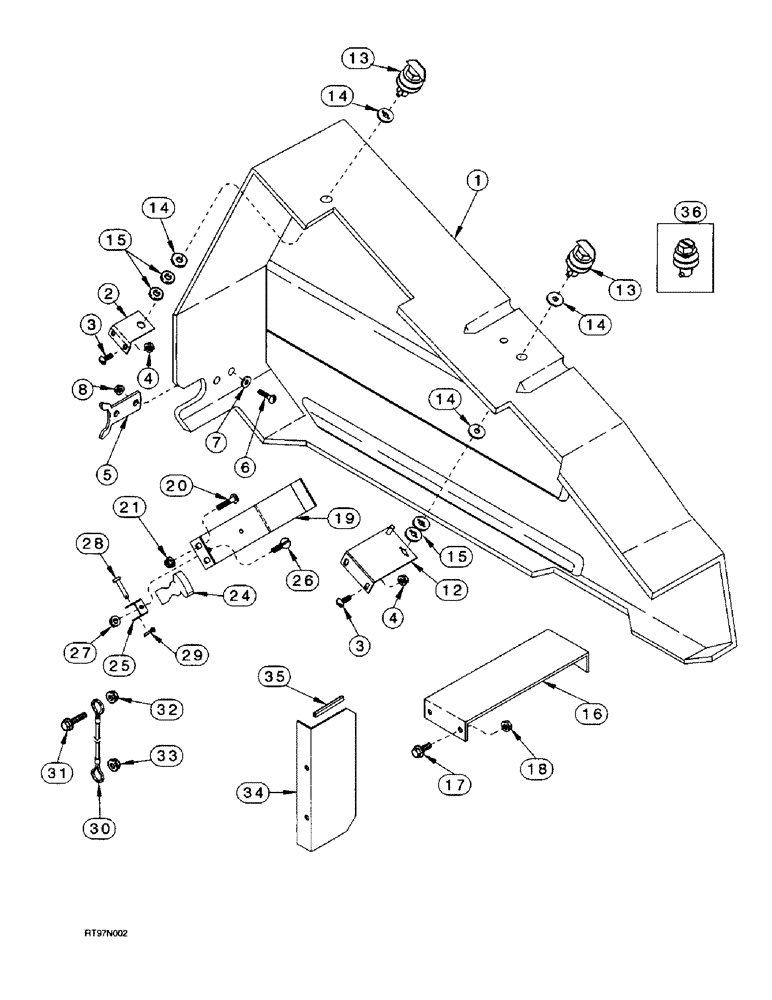

Запчасти Case IH 1015 (9-22) - AUGER DRIVE, SHIELD (58) - ATTACHMENTS/HEADERS

1

1326348C3

SHIELD

Left

1шт.

2

1316510C2

SUPPORT

Upper

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

5

764071C1

BRACKET

Hook

1шт.

6

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

No. 10 x 1/2

2шт.

7

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

2шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

12

1326758C1

SUPPORT

Front

1шт.

13

1326408C2

STUD,25.4mm OD x 52.3mm L

Stud Fastener, 1/4 Turn

2шт.

14

495-81023

WASHER,17/32" x 1 1/4" x .030"

17/32 x 1-1/4 x 1/32

12шт.

15

1326407C1

RETAINER

4шт.

16

1326420C1

SUPPORT

Lower Front

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

Bolt 3/8 x 3/4

2шт.

18

231-5146

FLANGE NUT,3/8"-16

2шт.

19

1326410C2

SUPPORT

Lower Rear

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

Bolt 3/8 x 3/4

2шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

24

494307C1

LATCH

Hook

1шт.

25

188103C1

BRACKET

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

28

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

1шт.

29

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

30

126396A1

CABLE

1шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.

33

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

34

292235A2

SHIELD

1шт.

35

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Trim 76 mm (3 in)

1шт.

36

252117A1

FASTENER

Stud Tool Operated Australia Only

1шт.
