Запчасти Case IH 1015 (9-20) - AUGER SUPPORTS (58) - ATTACHMENTS/HEADERS

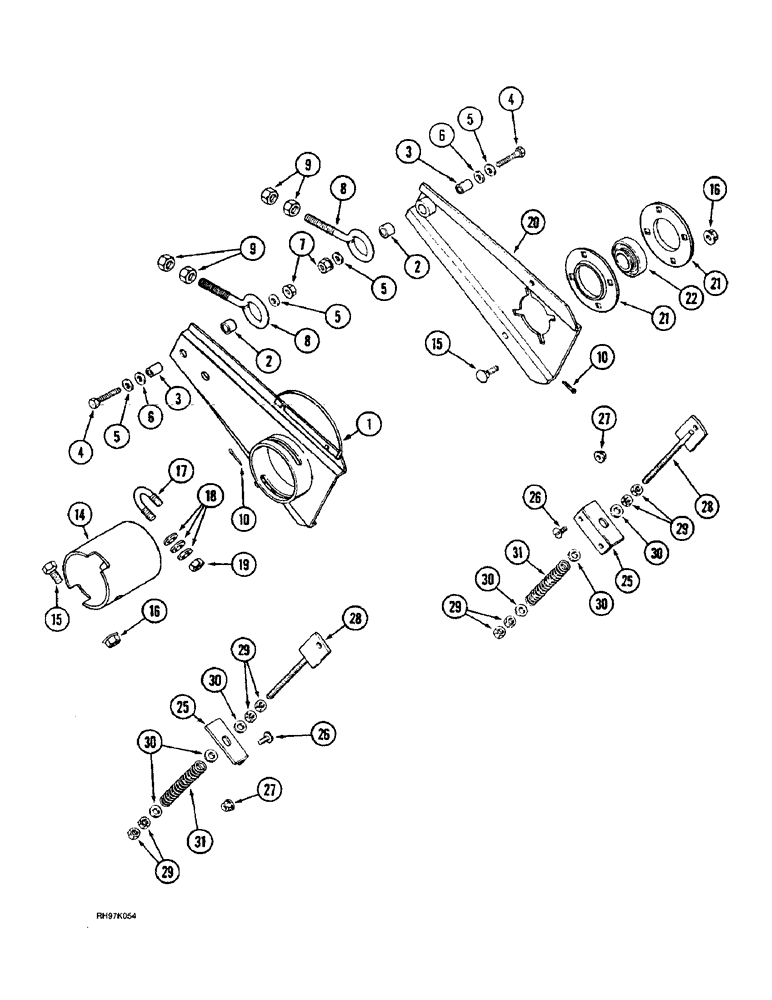

Схема запчастей Case IH 1015 - (9-20) - AUGER SUPPORTS (58) - ATTACHMENTS/HEADERS
20
16
25
30
16
29
15
1
5
9
5
26
3
19
4
21
30
28
15
27
3
4
31
9
25
22
31
26
10
5
7
30
30
17
2
6
2
14
8
5
21
6
27
10
18
28
29
29
8
30
29

Артикул

Название

Примечание

Количество

1

279857A1

SUPPORT

Bracket Right

1шт.

2

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

1шт.

3

1968840C1

SPACER

2шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

6

495-81256

WASHER,19.84mm ID x 28.57mm OD x 0.84mm Thk

25/32 x 1-1/8 x 3/64

2шт.

7

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

2шт.

8

1308451C1

U-BOLT

Bolt, Eye Auger Pivot

2шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

432-1218

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

2шт.

14

1320695C1

TUBE

Inner

1шт.

15

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

Flange 1/2 x 1

1шт.

18

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

17

1307195C2

U-BOLT,1/2" - 13 x 40.37mm W x 55mm L, Gr 8

Bolt, U

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

17/32 x 1-1/16 x 1/8

6шт.

19

231-4118

LOCK NUT,1/2"-13, GB

Nut, Lock 1/2

2шт.

20

1308023C91

SUPPORT

Bracket Left

1шт.

21

663562R1

FLANGE

Alternate with : 1307583C1

2шт.

21

1307583C1

FLANGED BEARING

Alternate with : 663562R1 Not Illustrated

2шт.

22

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

Bearing, Ball

1шт.

25

1308204C1

SUPPORT

Bracket Downstop

2шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

Bolt 3/8 x 3/4

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

1316375C1

STEM

Rod

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

17/32 x 1-1/16 x 1/8

6шт.

31

PO104

VALVE SPRING

Spring

2шт.

Выбрано товаров: 27
