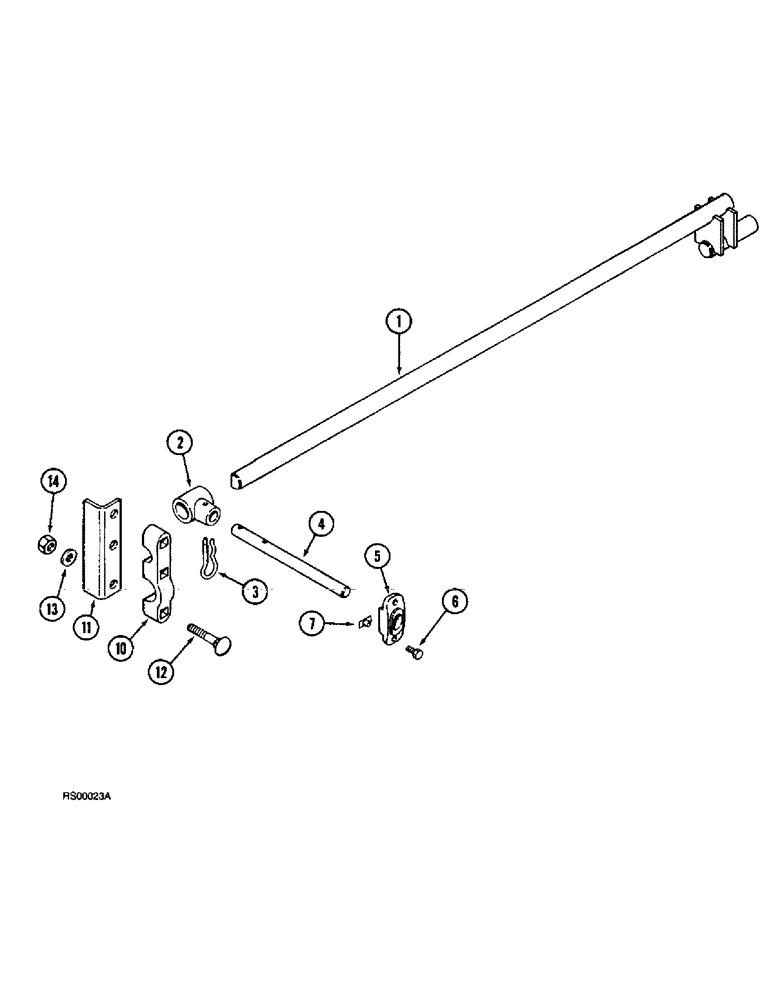

Запчасти Case IH 1015 (9-18) - AUGER RETRACTABLE FINGERS (58) - ATTACHMENTS/HEADERS

1

1316383C1

SHAFT

1шт.

2

1308425C1

HUB

20шт.

3

185309A1

HAIR PIN COTTER

Pin

18шт.

4

1320699C1

FINGER

18шт.

5

1307259C2

GUIDE

18шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

36шт.

7

127550

NUT,Tee, 1/4"-20

Special 1/4

36шт.

10

1326467C1

CLAMP

1шт.

11

1320698C1

ANGLE

1шт.

12

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 2 1/4", G5

3шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

17/32 x 1-1/16 x 1/8

3шт.

14

231-4118

LOCK NUT,1/2"-13, GB

Nut, Lock 1/2

3шт.
