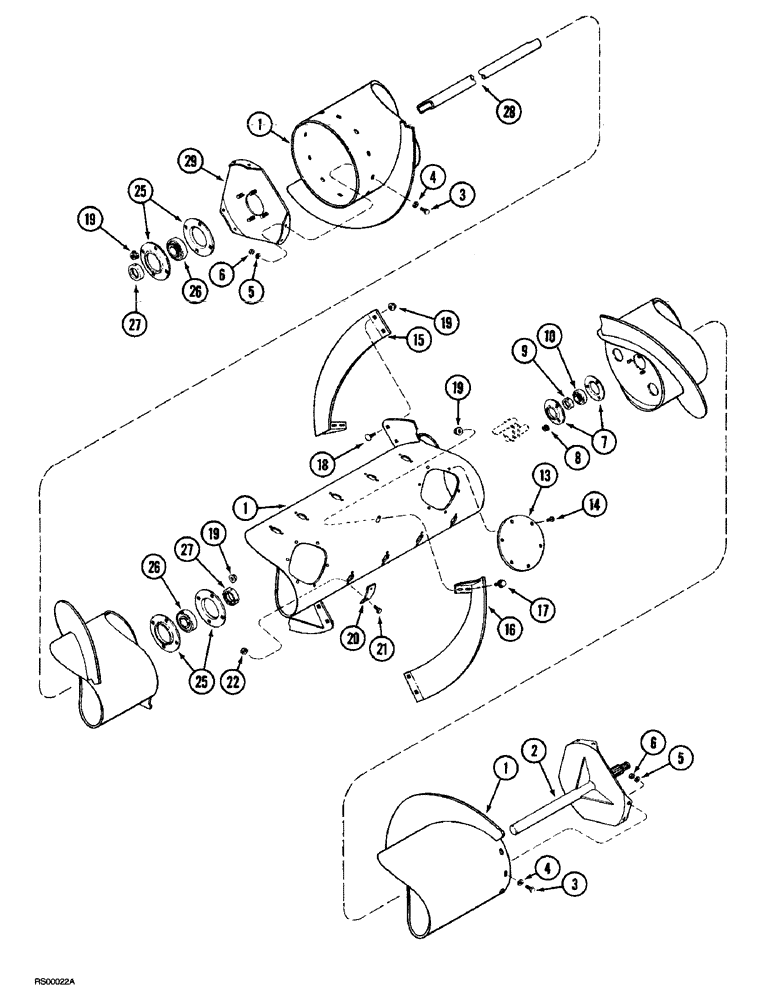

Запчасти Case IH 1015 (9-16) - AUGER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

1316165C2

AUGER

11 Ft

1шт.

1

1320255C2

AUGER

13 Ft

1шт.

2

181817C1

SHAFT

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

429-106

NUT,3/8"-16, G8

3/8; 8

12шт.

7

937517R1

FLANGE

2шт.

8

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

3шт.

9

455102R21

COLLAR

Locking With Set Screw

1шт.

10

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

Bearing, Ball

1шт.

13

184505C2

COVER

2шт.

14

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

Screw 1/4 x 1/2

12шт.

15

1308445C2

EXTENSION

Left

1шт.

16

1308446C2

EXTENSION

Right

1шт.

17

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

Flange 1/2 x 1

2шт.

18

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

Bolt 1/2 x 1

4шт.

19

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

20

167823C1

COVER

Locking With Set Screw

2шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

22

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

25

663562R1

FLANGE

Alternate with : 1307583C1

4шт.

25

1307583C1

FLANGED BEARING

Alternate with : 663562R1 Not Illustrated

4шт.

26

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

Bearing, Ball

2шт.

27

455112R11

COLLAR

2шт.

28

1316385C1

TUBE,38.087 mm OD, 1226.3 mm Length

11 Ft

1шт.

28

1320259C1

TUBE,38.087 mm OD, 1505.7 mm Length

13 Ft

1шт.

29

1307256C1

RETAINER

Right

1шт.
