(9-14) - CONVEYOR BELT, 51 TOOTH PICK-UP

Запчасти Case IH 1015 (9-14) - CONVEYOR BELT, 51 TOOTH PICK-UP (58) - ATTACHMENTS/HEADERS

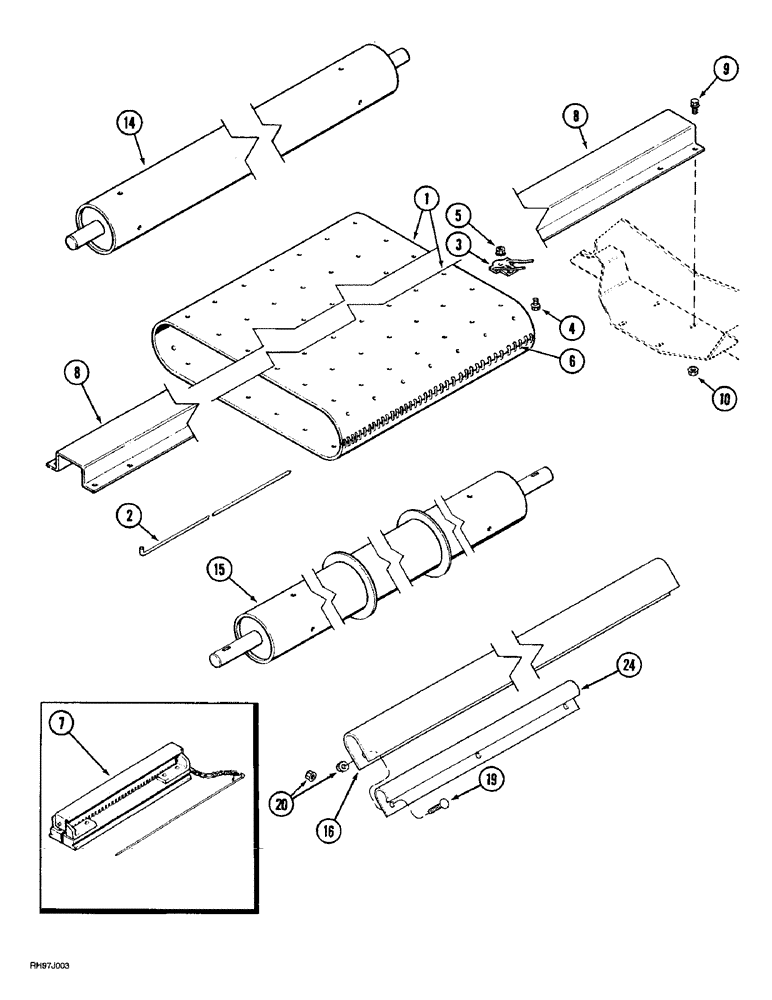

Схема запчастей Case IH 1015 - (9-14) - CONVEYOR BELT, 51 TOOTH PICK-UP (58) - ATTACHMENTS/HEADERS
4
10
7
5
20
24
19
14
8
16
3
2
8
15
6
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1977190C1

CONVEYOR BELT

BELT, CONVEYOR, Assy, 11 foot header uses 6 belts, 13 foot header uses 7 belts, Consists of 2 - 5

1шт.

2

176887C2

ELECTRICAL WIRE

Wire

1шт.

3

176888C1

TOOTH

51шт.

4

176889C1

BOLT,Elevator, Flat Hd, 1/4" - 20 x 19.05mm

1/4 x 3/4

51шт.

5

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

51шт.

6

567631R93

LACING

Package Conveyor Belt Lacing Package of : 760

1шт.

7

1316490C1

TOOL

Conveyor Belt Lacing

1шт.

8

1313503C1

SUPPORT

11 Ft

1шт.

8

1320227C1

SUPPORT

13 Ft

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

Flange 3/8 x 3/4

8шт.

10

473371R1

FLANGE NUT

Nut 3/8 NC

8шт.

14

1316758C4

ROLLER

Upper 11 Ft

1шт.

14

1316759C4

ROLL

er Upper 13 Ft

1шт.

15

1316760C4

ROLL

er Lower 11 Ft

1шт.

15

1316761C4

ROLL

er Lower 13 Ft

1шт.

16

1305719C3

SEALING STRIP

Sealing 11 Ft

1шт.

16

1320220C3

SEALING STRIP,5mm Thk

Sealing 13 Ft

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

24

1326897C1

SUPPORT

11 Ft

6шт.

24

1326897C1

SUPPORT

13 Ft

7шт.
