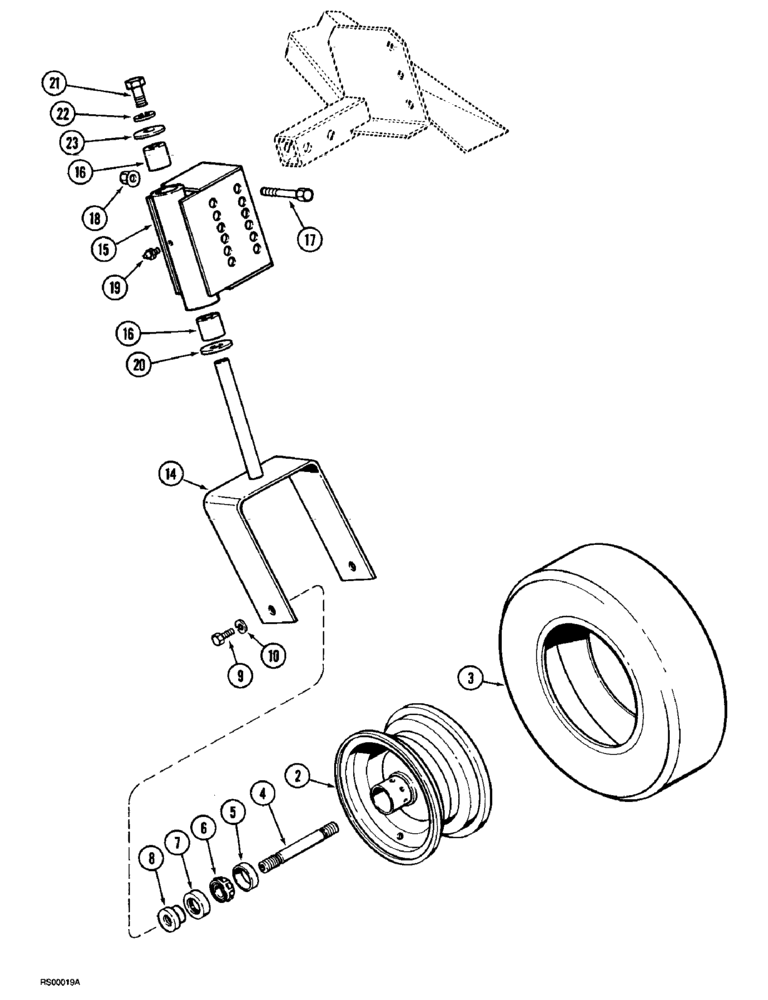

Запчасти Case IH 1015 (9-12) - GAUGE WHEEL (58) - ATTACHMENTS/HEADERS

1313577C93

WHEEL

Assy Consists Of : 2 , 5-7. (Shaft Not Included)

2шт.

2

1326770C1

WHEEL

1шт.

3

NSS

NOT SOLD SEPARAT

Tire 4.80 x 8.00

1шт.

4

1326772C1

AXLE

Shaft, Axle

1шт.

5

651814R1

BEARING CUP

Cup

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

Cone

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

542217R91

OIL SEAL,28.57mm ID x 45.34mm OD x 11.91mm Thk

Seal

2шт.

8

1326771C1

NUT

2шт.

9

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

1/2 NF x 1-3/4

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

14

1316542C1

CLEVIS

Yoke

2шт.

15

1316546C91

PIVOT ASSY.

Pivot Assy Includes : 16

2шт.

16

1326365C1

BUSHING

1шт.

17

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2 x 3-1/4

4шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

20

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1-5/16 x 2-1/2 x 9/64

2шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

1326368C1

WASHER

13 x 54 x 6 mm

2шт.
