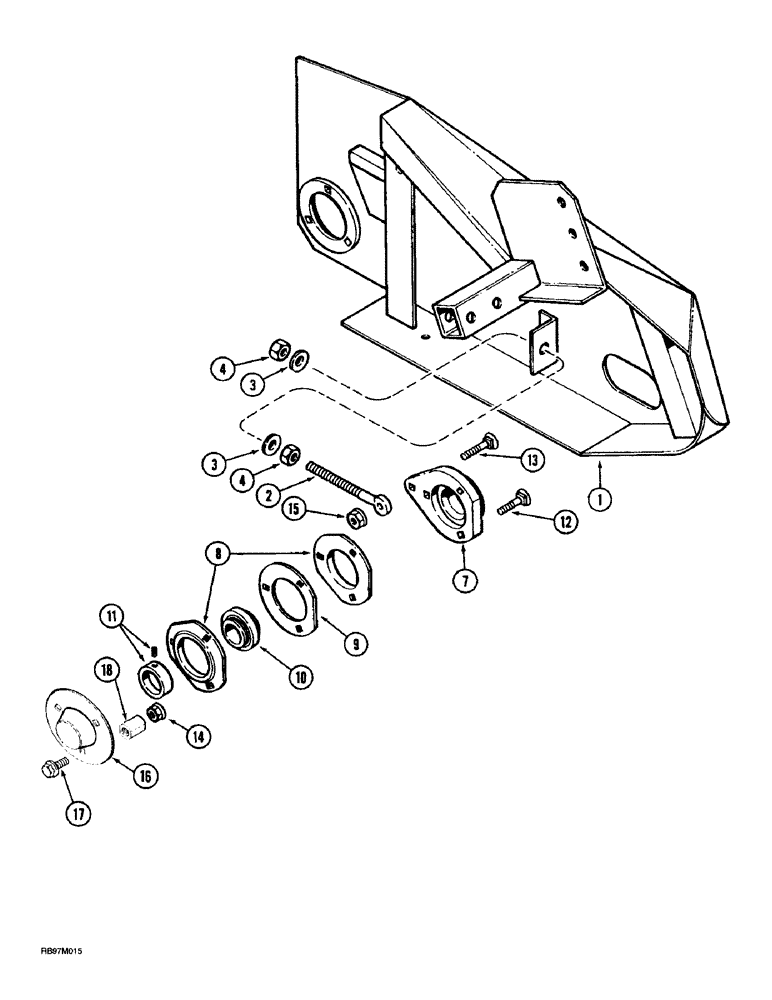

Запчасти Case IH 1015 (9-10) - GAUGE WHEEL SUPPORT (58) - ATTACHMENTS/HEADERS

1

1316551C3

SUPPORT

Right Hand

1шт.

1

1316550C3

SUPPORT

Left Hand Not Illustrated

1шт.

2

1326456C1

BOLT,5/8" - 11 x 140mm

Bolt, Eye

2шт.

3

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 5/32

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

7

176900C2

RETAINER

2шт.

8

571425R1

FLANGED BEARING

8шт.

9

176935C1

SHIM

8шт.

10

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

Ball

4шт.

11

557995R11

COLLAR

4шт.

12

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

Bolt 3/8 x 1-1/2

6шт.

13

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

Bolt 7/16 x 1-3/4; 8

2шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

1313463C1

FLANGE NUT

Nut, Lock 7/16

2шт.

16

219547C2

COVER

Bearing

2шт.

17

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

Flange 3/8 x 1/2

6шт.

18

291615A1

SPACER

3/8

6шт.
