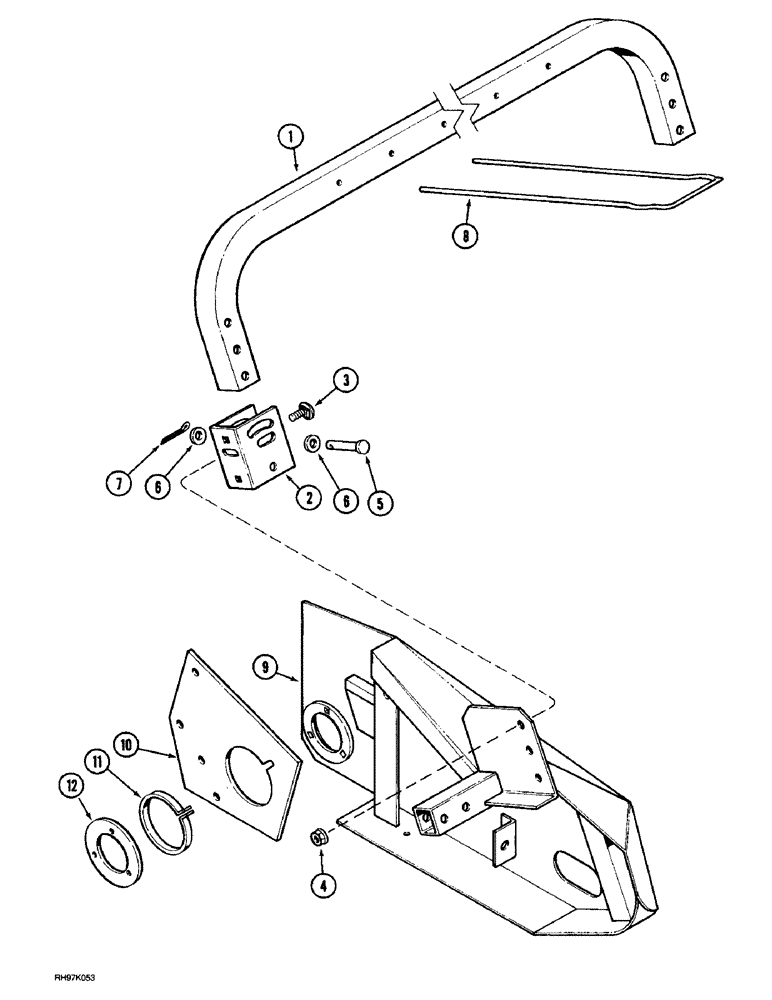

Запчасти Case IH 1015 (9-08) - WINDROW DEFLECTOR (58) - ATTACHMENTS/HEADERS

1

1313505C1

FRAME

11 Ft

1шт.

1

1320234C1

FRAME

13 Ft

1шт.

2

176976C2

SUPPORT TUBE

Support

2шт.

3

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

Bolt 1/2 x 1-1/4

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

147404C1

PIN,12.7mm OD x 83mm L

Clevis 1/2 x 3-1/4

2шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

17/32 x 1-1/16 x 1/8

4шт.

7

432-1216

COTTER PIN,3/16" x 1"

2шт.

8

176972C2

FINGER

1шт.

9

1316551C3

SUPPORT

Gauge Wheel Right Hand

1шт.

10

1316790C1

LARGE PLATE

Plate

2шт.

11

179399C1

BAND

Ring

2шт.

12

176908C1

RETAINER

2шт.
