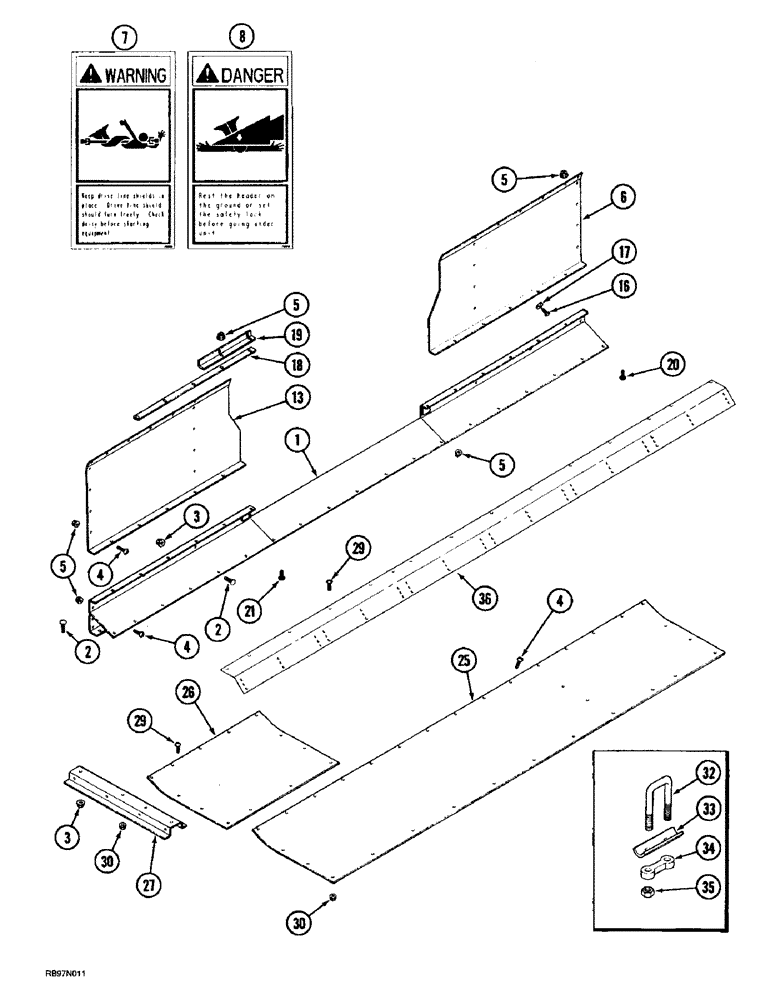

Запчасти Case IH 1015 (9-04) - MAIN FRAME, LOWER (58) - ATTACHMENTS/HEADERS

1

1316184C1

FRAME

11 Ft

1шт.

1

1320246C1

FRAME

13 Ft

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

Bolt 1/2 x 1

4шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

6

1326065C92

SHEET

Assy Left - Rear 11 Ft Includes : 7, 8

1шт.

6

1326067C92

SHEET

Assy Left - Rear 13 Ft Includes : 7, 8

1шт.

7

REF

INSTRUCTION

Decal, Danger See Page : 9-47, 9-49

1шт.

8

REF

INSTRUCTION

Decal, Warning See Page : 9-47, 9-49

1шт.

13

1326066C92

SHEET

Right - Rear 11 Ft

1шт.

13

1326068C92

SHEET

Right - Rear 13 Ft

1шт.

16

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

Screw 5/16 x 3/4

1шт.

17

495-81120

WASHER,.344" x 1 1/4" x .120"

11/32 x 1-1/4 x 7/64

1шт.

18

189825C2

STRIPPER

Bar

2шт.

19

1316564C1

ANGLE

2шт.

20

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

Bolt, Short NK, 5/16"-18 x 1", G5, Full Thd

4шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

1шт.

25

1316207C1

SUPPORT

Bottom, Left 11 Ft

1шт.

25

1316212C1

SUPPORT

Bottom, Left 13 Ft

1шт.

26

1316208C1

SUPPORT

Bottom, Right 11 Ft

1шт.

26

1316213C1

SUPPORT

Bottom, Right 13 Ft

1шт.

27

1305621C1

SUPPORT

2шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

32

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

Bolt, U

2шт.

33

1307370C1

SUPPORT

If Equipped

2шт.

34

1307371C1

LATCH

2шт.

35

231-14110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

36

1326895C1

SUPPORT

11 Ft

1шт.

36

1326896C1

BAR

Support 13 Ft

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.
