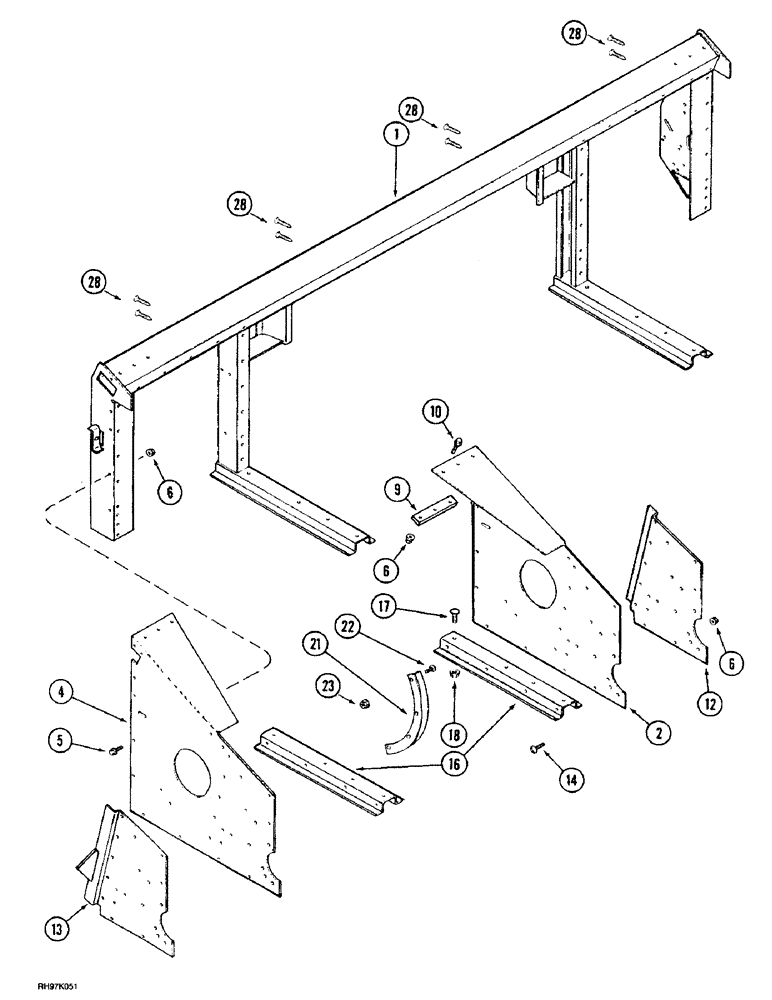

Запчасти Case IH 1015 (8-15) - MAIN FRAME, UPPER (58) - ATTACHMENTS/HEADERS

1

1316182C3

FRAME

132 in 11 Ft

1шт.

1

1320245C3

FRAME

154 in 13 Ft

1шт.

2

1326055C91

SUPPORT

Assy

1шт.

4

1308093C3

SUPPORT

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

Flange 3/8 x 3/4

15шт.

6

231-5146

FLANGE NUT,3/8"-16

39шт.

9

1313966C1

BAR

2шт.

10

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

12

1308218C2

SUPPORT

1шт.

13

279859A1

SUPPORT

1шт.

16

1305621C1

SUPPORT

2шт.

17

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

Bolt 1/2 x 1

2шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

21

1307704C1

ANGLE BAR

Angle

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

28

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

Screw 5/16 st x 3/4

8шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

18шт.
