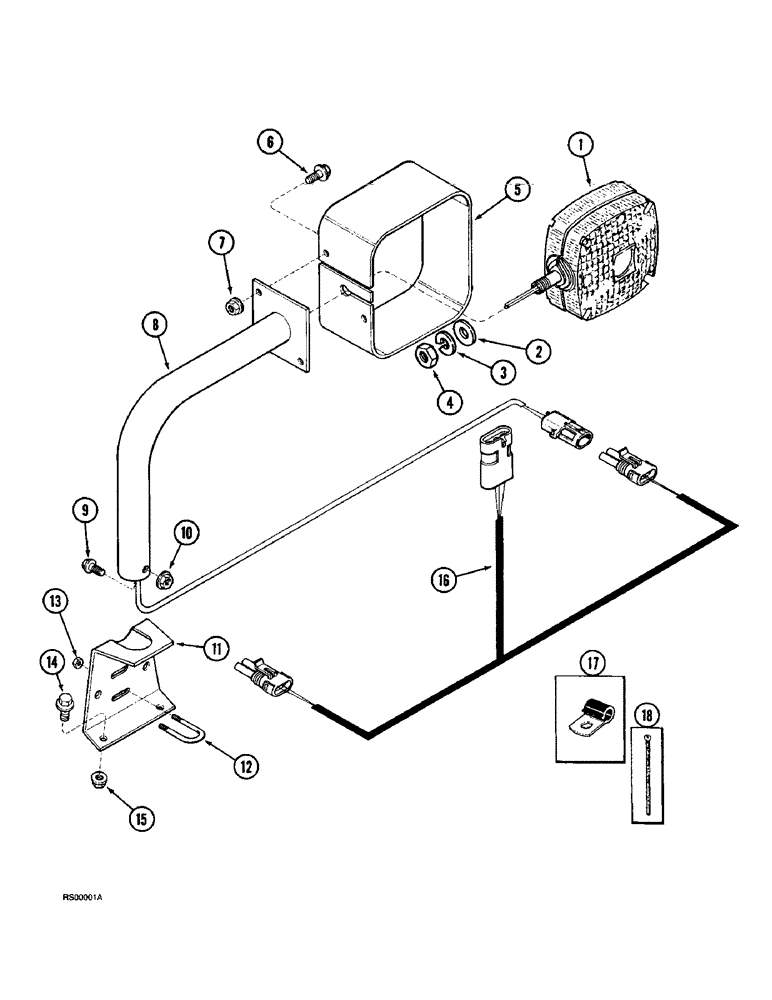

Запчасти Case IH 1015 (4-02) - WIRING HARNESS AND LAMP MOUNTING (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Lamp Assy See Page : 4-5

2шт.

2

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-118

NUT,1/2"-20, G5

1/2 NF

2шт.

5

126890A1

SHIELD

2шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

8

127031A1

SUPPORT

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

11

127057A1

SUPPORT

Angle

2шт.

12

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

Bolt, U

2шт.

13

231-4215

LOCK NUT,5/16"-18, GB

Nut, Flange 5/16

4шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

Flange 3/8 x 3/4

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

141779A1

HARNESS

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

Clamp

2шт.
