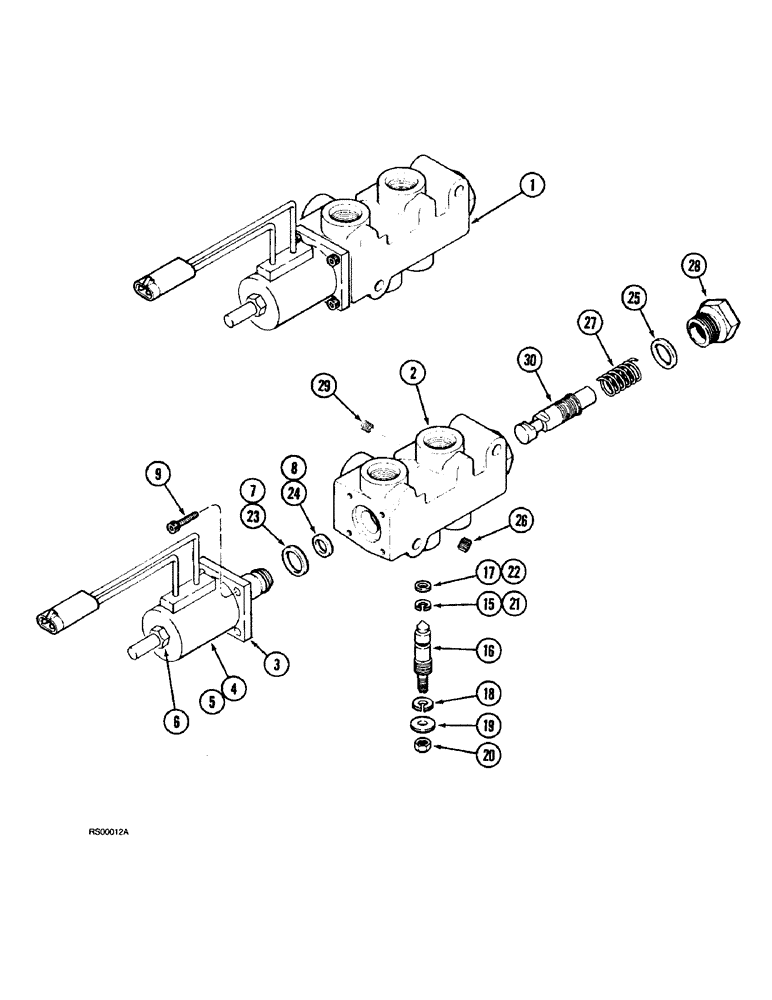

Запчасти Case IH 1015 (8-14) - PICKUP DRIVE, SPEED CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

1272619C93

VALVE

Assy, Control Consists Of : 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

92669C2

SOLENOID SWITCH

Solenoid Includes : 4 - 9

1шт.

4

114555A1

SOLENOID

Coil

1шт.

5

1301632C1

CAP

Cover

1шт.

6

107825

NUT,Stamped, 1/2"-20

1/2 NF

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

62-3108

HEX SOC SCREW,#10 - 32 x 1/2"

Bolt No. 10 NF x 1/2

4шт.

92670C1

KIT

Manual Overide Consists Of : 15 - 20

1шт.

15

G108725

BACK-UP RING

Ring, Backup

1шт.

16

NSS

NOT SOLD SEPARAT

Screw Adjusting

1шт.

17

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

18

L31750

CIRCLIP,0.562", Int, #56

Ring, Snap, 0.562", Int, #56

1шт.

19

107969A1

WASHER

1шт.

20

425-154

JAM NUT,Jam, 1/4"-28, G5

1/4 NF

1шт.

92671C1

KIT

Consists Of : 21 - 29

1шт.

21

G108725

BACK-UP RING

Ring, Backup

1шт.

22

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

115466A1

PORT

Orifice 0.025 in

1шт.

27

115467A1

SPRING

1шт.

28

115468A1

CAP

Plug

1шт.

29

115465A1

PORT

Orifice 0.031 in

1шт.

30

NSS

NOT SOLD SEPARAT

Spool

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
