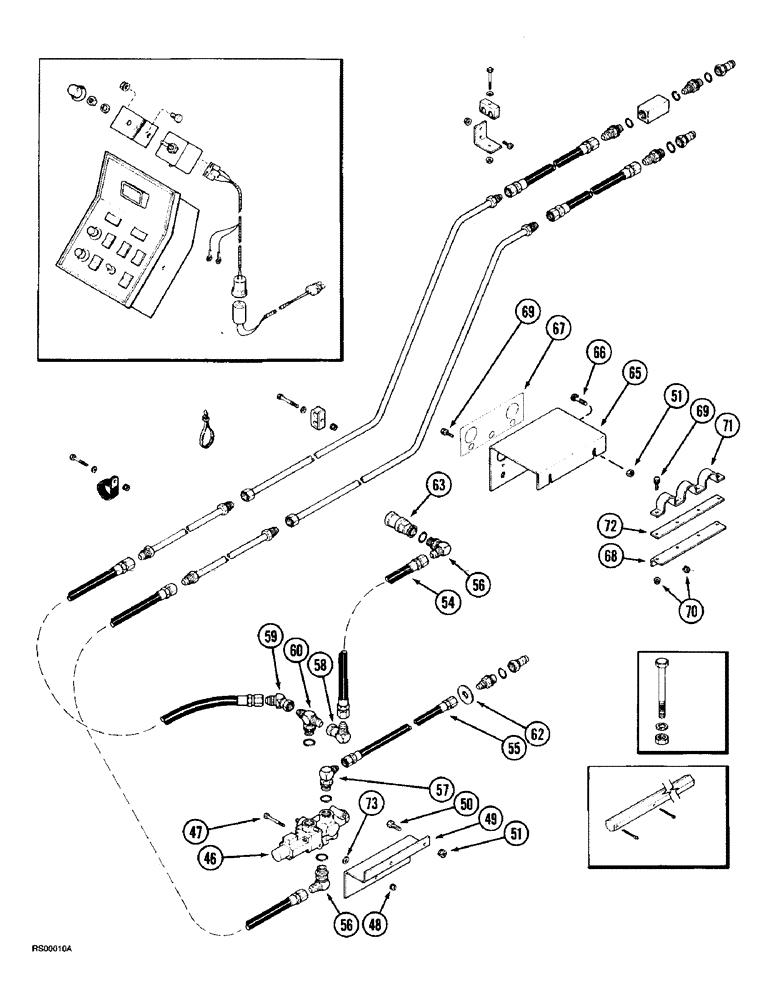

Запчасти Case IH 1015 (8-12) - HEADER ADAPTER ATTACHMENT, TO 1482 COMBINE (35) - HYDRAULIC SYSTEMS

46

REF

INSTRUCTION

Valve Assy, Control See Page : 8-15

1шт.

47

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

49

1324918C2

SUPPORT

Bracket

1шт.

50

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

Bolt 3/8 x 1

2шт.

51

231-5146

FLANGE NUT,3/8"-16

1шт.

54

1327789C1

HOSE

305 mm (12 in)

1шт.

55

1327580C1

HOSE

1041 mm (41 in)

1шт.

56

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 7/8 fl x adj Or

2шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 3/4 fl x 7/8 Or

1шт.

58

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

59

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

60

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj O-ring br

1шт.

62

1345266C1

WASHER

1шт.

63

1282338C91

COUPLING, QUICK, FEM

Coupling 7/8 NF

1шт.

65

1321988C2

SUPPORT

Bracket

1шт.

66

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

Bolt 3/8 x 1-1/4

2шт.

67

1330614C1

PRODUCT GRAPHIC

Decal See Page : 9-47

1шт.

68

1321989C2

SUPPORT

1шт.

69

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

6шт.

70

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

71

1321990C1

CLAMP

1шт.

72

1327582C1

PLATE

Spacer

1шт.

73

495-81117

WASHER,.344" x 1" x .120"

11/32 x 1 x 7/64

2шт.
