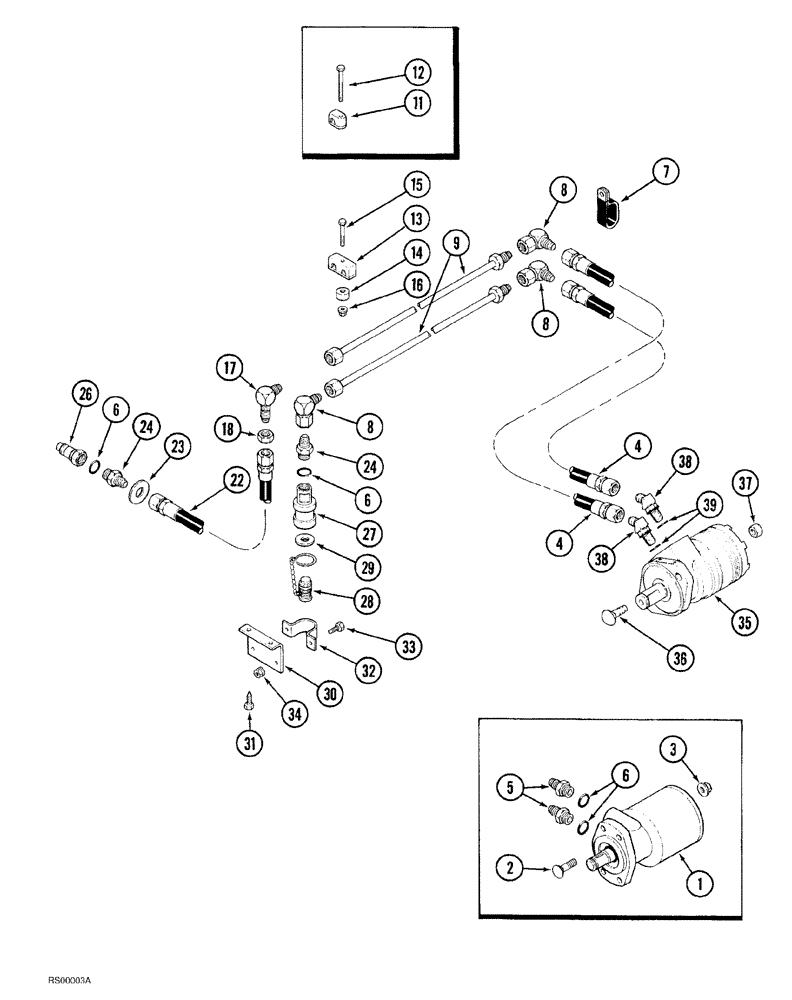

Запчасти Case IH 1015 (8-002) - HYDRAULIC PICKUP (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

MOTOR ASSEMBLY, hydraulic (See Fig. 8-4 or 8-6)

1шт.

2

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2 NC x 2 inch

2шт.

3

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

4

179411C1

HOSE

3/8 ID x 61 inch

2шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

7

470375C1

CLAMP,1", Insul, 3/8" Bolt

double

2шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

3шт.

9

1316441C1

TUBE,0.5" OD, 663 mm Length

hydraulic, (11 foot center discharge)

2шт.

9

1316443C1

TUBE,0.5" OD, 943 mm Length

(13 foot center discharge)

2шт.

9

1316442C1

TUBE,0.5" OD, 239 mm Length

hydraulic, (offset discharge)

2шт.

11

196447C1

CLAMP

tube, 1/2 inch single (offset discharge)

2шт.

12

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

hex, 1/4 NC x 3 inch

1шт.

13

1301178C1

CLAMP

tube, 1/2 inch double (center discharge)

1шт.

14

1326572C1

SPACER

10 mm

1шт.

15

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

16

232-4114

LOCK NUT,1/4"-20, GC

1шт.

17

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

18

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

22

1316829C1

HOSE

3/8 ID x 38 inch, return

1шт.

23

1345266C1

WASHER

lock, white, special

1шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

26

1272399C2

QUICK MALE COUPLING

self sealing male, 7/8 inch NF threads (See Fig. 8-12)

1шт.

27

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch (See Fig. 8-12)

1шт.

28

1954133C1

PLUG

coupling, dust, Includes Ref: 29

1шт.

29

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug

1шт.

30

1316779C1

SUPPORT

quick disconnect support

1шт.

31

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

Hardened

2шт.

32

1321398C1

CLAMP

quick disconnect

1шт.

33

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

35

REF

INSTRUCTION

MOTOR ASSEMBLY, hydraulic (See Fig. 8-8)

1шт.

36

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

37

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

38

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ELBOW, 45 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
