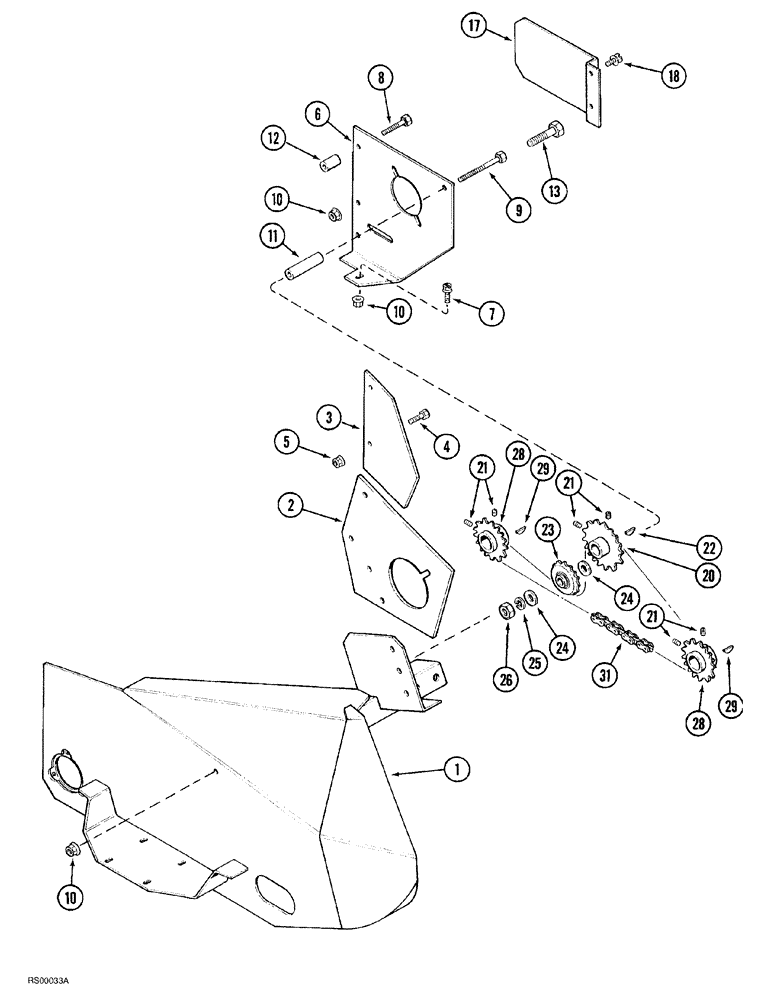

Запчасти Case IH 1015 (9-042) - PICKUP DRIVE (58) - ATTACHMENTS/HEADERS

1

1316550C2

SUPPORT

gauge wheel, left hand

1шт.

2

1316790C1

LARGE PLATE

PLATE, LARGE support

1шт.

3

1326347C1

COVER

end

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

1316794C2

SUPPORT

hydraulic motor

1шт.

7

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

hex, self-locking, special, 3/8 NC x 1 inch

1шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

1шт.

10

231-5146

FLANGE NUT,3/8"-16

5шт.

11

1316797C2

SPACER

3/8 x 3-3/8 inch

1шт.

12

97457R1

SPACER,3/8" X-Strng Pipe x 1 9/16"

3/8 x 1-15/32 inch

1шт.

13

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

17

1316796C1

SHIELD

drive

1шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

20

1316824C2

SPROCKET ASSY.

21 tooth, drive

1шт.

With drive sprockets Ref. 20 use bulk chain 1792D, connecting link 241-1315 and offset link 241-1715 in the following quantities: 103 links, 1 connecting link, and 2 offset links

1шт.

20

1316616C2

SPROCKET ASSY.

32 tooth, drive

1шт.

With drive sprockets Ref. 20 use bulk chain 1792D, connecting link 241-1315 and offset link 241-1715 in the following quantities: 106 links and 1 connecting link

1шт.

21

484-1386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

headless hex socket, 3/8 NF x 3/8 inch

6шт.

22

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

594706R91

SPROCKET ASSY.,15T

15 tooth, idler

1шт.

24

495-51066

WASHER,9/16" x 1 1/4" x .1"

flat, 21/32 x 1-1/4 x 3/32 inch

7шт.

25

492-11062

BEARING WASHER,5/8"

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

28

1316916C2

SPROCKET ASSY.

17 tooth, driven

2шт.

29

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

31

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, drive

1шт.

With drive sprockets Ref. 20 use bulk chain 1792D, connecting link 241-1315 and offset link 241-1715

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

bulk, 10 foot roll

1шт.

241-1315

LINK, CONNECTING

single pitch, No. 50, 5/8 inch pitch

1шт.

241-1715

LINK,15.88mm Pitch

offset, single pitch, No. 50, 5/8 inch pitch

1шт.
