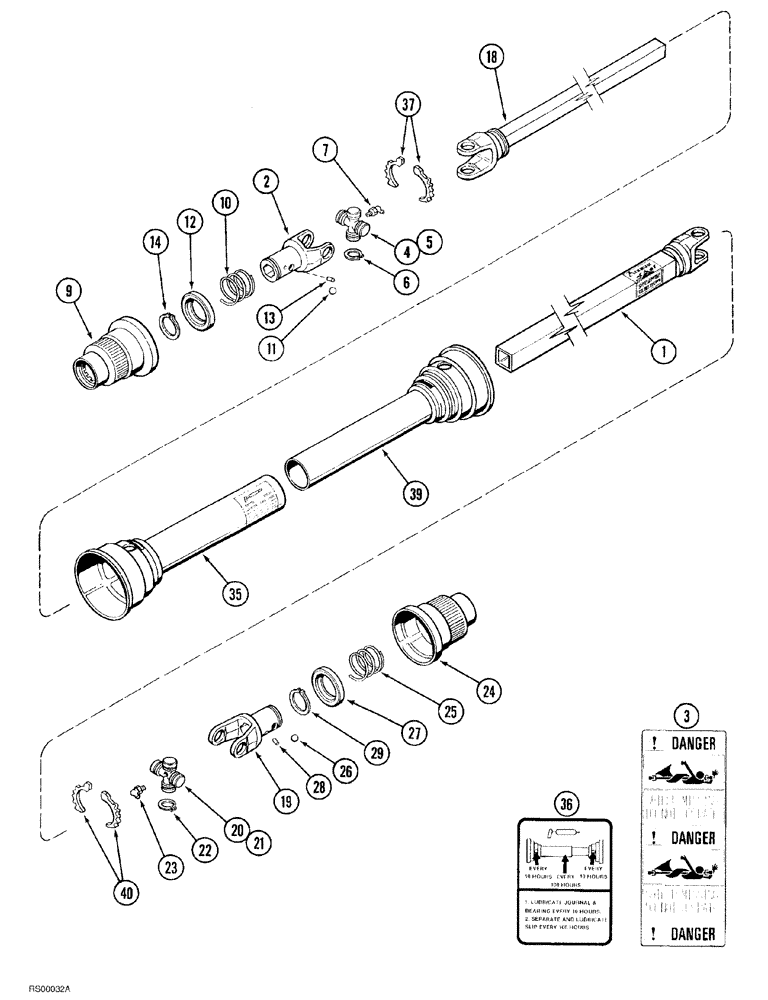

Запчасти Case IH 1015 (9-040) - DRIVE SHAFT, HAYES-DANA (58) - ATTACHMENTS/HEADERS

1316991C91

JOINT ASSY.

SHAFT drive, Includes Ref: 1-40

1шт.

1326742C91

SHAFT

ASSEMBLY drive, outer, Includes Ref: 1-14

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT outer

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE outer

1шт.

3

REF

INSTRUCTION

DECAL danger, shield missing, See Fig. 9-48

1шт.

757443

U-JOINT SPIDER

KIT cross and bearing, Includes Ref: 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

CROSS drive shaft

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING needle

4шт.

6

1986059C1

SNAP RING

retaining, 0.058 inch thick, if equipped

4шт.

6

606177R1

SNAP RING

retaining, 0.078 inch thick, if equipped

4шт.

7

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

9

1326580C1

COLLAR

yoke

1шт.

10

1326585C1

SPRING

shield

1шт.

11

21505R1

BALL,1/2" Dia, Stainless

1/2 inch

3шт.

12

1326583C1

COLLAR

RACE shaft retainer

1шт.

13

19877R1

DOWEL

PIN, 3/16 x 1/2 inch

3шт.

14

100-11187

SNAP RING,#187, Ext

1шт.

1326745C91

SHAFT

ASSEMBLY, drive, inner, Includes Ref: 18-29

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT inner

1шт.

19

NSS

NOT SOLD SEPARAT

YOKE outer

1шт.

757443

U-JOINT SPIDER

KIT cross and bearing, Includes Ref: 20-23

1шт.

20

NSS

NOT SOLD SEPARAT

CROSS drive shaft

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING needle

4шт.

22

1986059C1

SNAP RING

retaining, 0.058 inch thick, if equipped

4шт.

22

606177R1

SNAP RING

retaining, 0.078 inch thick, if equipped

4шт.

23

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

24

1326580C1

COLLAR

yoke

1шт.

25

1326585C1

SPRING

shield

1шт.

26

21505R1

BALL,1/2" Dia, Stainless

1/2 inch

3шт.

27

1326583C1

COLLAR

RACE shaft retainer

1шт.

28

19877R1

DOWEL

PIN, 3/16 x 1/2 inch

3шт.

29

100-11187

SNAP RING,#187, Ext

1шт.

1326748C91

PROTECTOR

SHIELD ASSEMBLY, outer, Includes Ref: 35-37

1шт.

35

NSS

NOT SOLD SEPARAT

SHIELD outer

1шт.

36

REF

INSTRUCTION

DECAL lubrication instructions, See Fig. 9-48

1шт.

37

1980787C1

BEARING ASSY

BEARING KIT, shield

2шт.

1326751C91

PROTECTOR

SHIELD ASSEMBLY, inner, Includes Ref: 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

SHIELD inner

1шт.

40

1980787C1

BEARING ASSY

BEARING KIT, shield

2шт.
