(9-038) - DRIVE SHAFT, WALTERSCHEID

Запчасти Case IH 1015 (9-038) - DRIVE SHAFT, WALTERSCHEID (58) - ATTACHMENTS/HEADERS

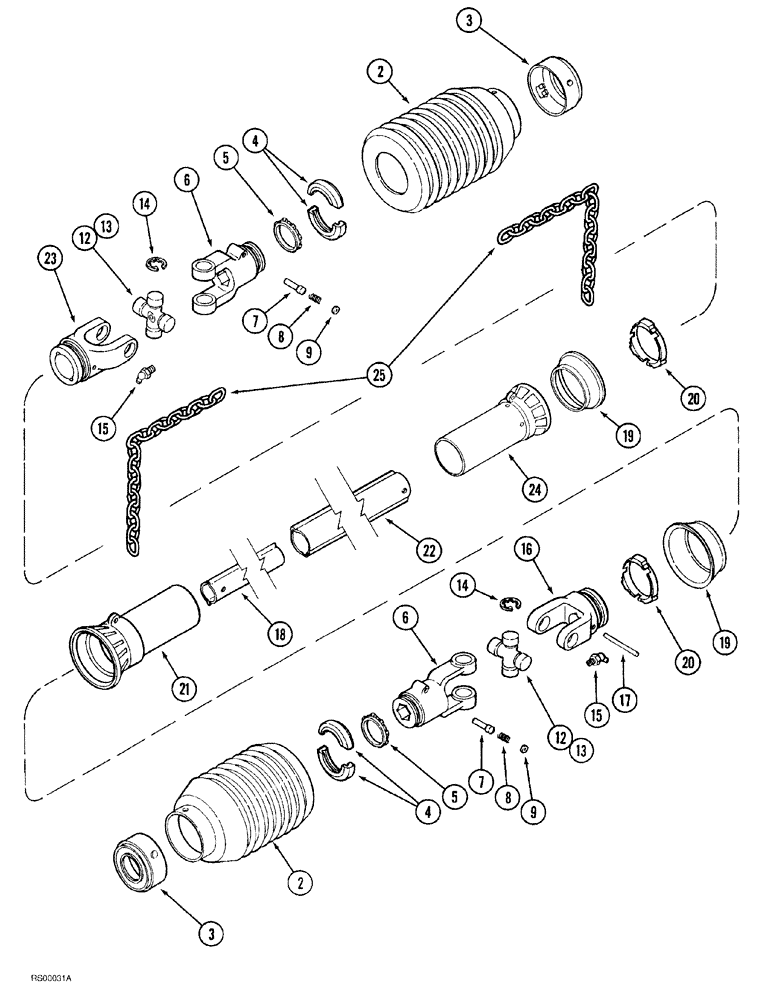

Схема запчастей Case IH 1015 - (9-038) - DRIVE SHAFT, WALTERSCHEID (58) - ATTACHMENTS/HEADERS
15
2
5
4
14
18
7
24
21
12
20
3
8
20
13
5
9
3
19
13
12
16
4
6
2
7
23
9
6
19
8
22
17
14
25
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1316374C91

JOINT ASSY.

SHAFT, drive, Includes Ref: 2-25

1шт.

2

1326494C1

SHIELD

drive shaft, ribbed

2шт.

3

1326500C1

COLLAR

drive shaft

2шт.

4

1326498C1

RING

outer

4шт.

5

1326499C1

WASHER

ball

2шт.

6

1326490C1

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY, drive shaft, Includes Ref: 7-9

2шт.

1281458C1

KIT

KIT pin

1шт.

7

NSS

NOT SOLD SEPARAT

PIN quick disconnect

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING disconnect pin

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER disconnect pin

1шт.

1281444C1

KIT

cross and bearing, Includes Ref: 12-15

2шт.

12

NSS

NOT SOLD SEPARAT

CROSS drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING cross

4шт.

14

NSS

NOT SOLD SEPARAT

RING retaining, internal

4шт.

15

NSS

NOT SOLD SEPARAT

FITTING grease

1шт.

16

1281445C1

YOKE

UNIVERSAL JOINT YOKE end

1шт.

17

30907R1

LOCK PIN,M10 x 70, Slotted

slotted spring, 10 x 70 mm

2шт.

18

1326505C1

SHAFT

inner

1шт.

19

1326495C1

SHIELD

FLANGE guard

2шт.

20

1281450C1

RING

bearing

2шт.

21

1326507C1

PROTECTOR

outer

1шт.

22

1326506C1

SHAFT

outer

1шт.

23

1326493C1

YOKE

UNIVERSAL JOINT YOKE end

1шт.

24

1326508C1

PROTECTOR

inner

1шт.

25

1281453C1

CHAIN (AG)

anti rotation

1шт.
