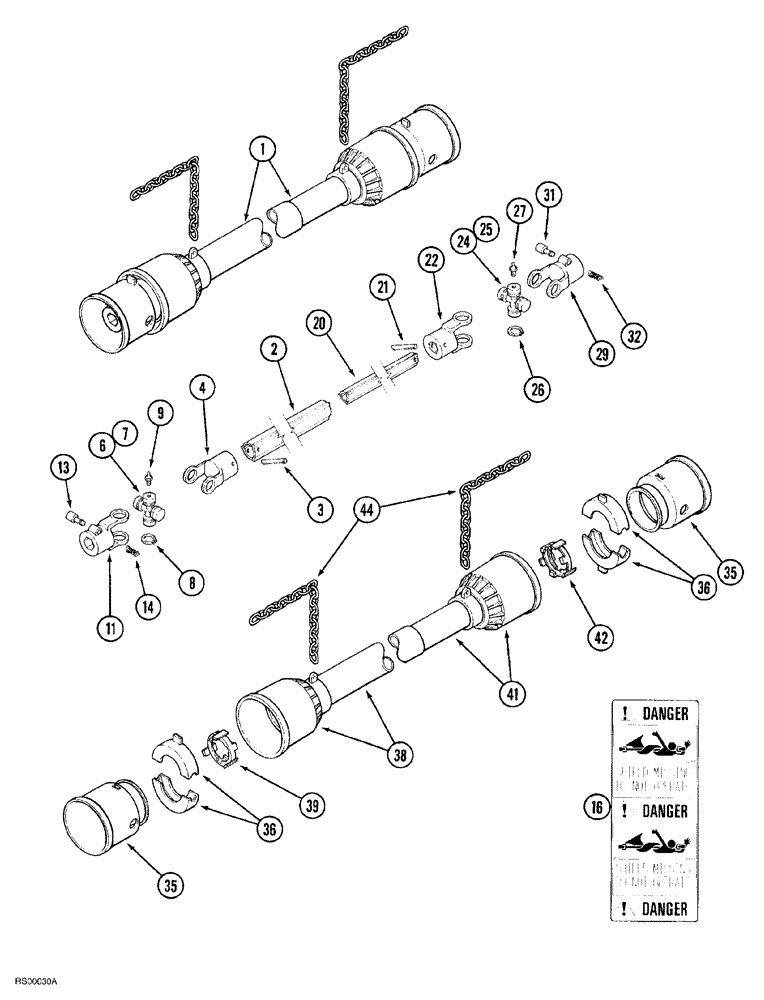

Запчасти Case IH 1015 (9-036) - DRIVE SHAFT, BONDIOLI AND PAVESI (58) - ATTACHMENTS/HEADERS

1

1316372C92

SHAFT

ASSEMBLY drive, header, Includes Ref: 2-44

1шт.

1326657C91

SHAFT

ASSEMBLY drive, outer, Includes Ref: 2-16

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT outer

1шт.

3

Q2937

LOCK PIN,M8 x 55, Slotted

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE outer shaft

1шт.

1330586C1

REPAIR KIT

KIT cross and bearing, Includes Ref: 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

CROSS drive shaft

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING cross

4шт.

8

933916R1

SNAP RING,M24, Int

internal retaining, 26 mm

4шт.

9

933756R1

LUBE NIPPLE,M6 x 1

FITTING grease, 6 x 1.00 mm

2шт.

11

NSS

NOT SOLD SEPARAT

YOKE quick disconnect

1шт.

1311950C1

KIT

push pin, Includes Ref: 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

PIN push

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING push pin

1шт.

16

REF

INSTRUCTION

DECAL danger, shield missing, See Fig. 9-48

1шт.

1326622C91

SHAFT

ASSEMBLY drive, inner, Includes Ref: 20-32

1шт.

20

NSS

NOT SOLD SEPARAT

SHAFT inner

1шт.

21

Q2935

LOCK PIN,M8 x 45, Slotted

1шт.

22

NSS

NOT SOLD SEPARAT

YOKE inner shaft

1шт.

1330586C1

REPAIR KIT

KIT cross and bearing, Includes Ref: 24-27

1шт.

24

NSS

NOT SOLD SEPARAT

CROSS drive shaft

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING cross

4шт.

26

933916R1

SNAP RING,M24, Int

internal retaining, 26 mm

4шт.

27

933756R1

LUBE NIPPLE,M6 x 1

FITTING grease, 6 x 1.00 mm

2шт.

29

NSS

NOT SOLD SEPARAT

YOKE quick disconnect

1шт.

1311950C1

KIT

push pin, Includes Ref: 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

PIN push

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING push pin

1шт.

1326625C91

SHIELD

SHIELD ASSEMBLY, yoke, Includes Ref: 35, 36

2шт.

35

NSS

NOT SOLD SEPARAT

CONE end

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING shield

1шт.

1326626C91

SHIELD

ASSEMBLY, outer shaft, Includes Ref: 38, 39

1шт.

38

NSS

NOT SOLD SEPARAT

TUBE AND CONE shield

1шт.

39

NSS

NOT SOLD SEPARAT

BEARING shield

1шт.

1326629C91

PROTECTOR

SHIELD ASSEMBLY, inner shaft, Includes Ref: 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

TUBE AND CONE shield

1шт.

42

NSS

NOT SOLD SEPARAT

BEARING shield

1шт.

44

1326632C1

CHAIN

drive shaft

2шт.
