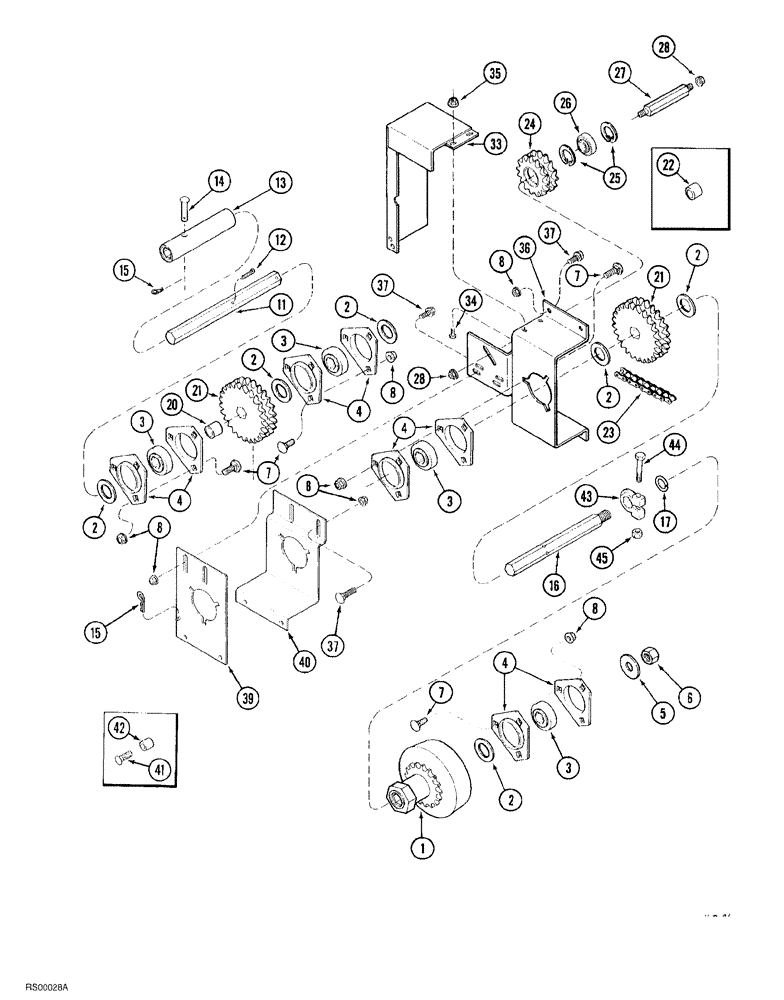

Запчасти Case IH 1015 (9-032) - AUGER JACKSHAFT DRIVE, OFFSET DISCHARGE GRAIN HEADERS (58) - ATTACHMENTS/HEADERS

1

REF

INSTRUCTION

CLUTCH ASSEMBLY, slip, auger drive, See Fig. 9-34

1шт.

2

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

flat, 1-13/32 x 2 x 3/64 inch

1шт.

3

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

ball

4шт.

4

180955C1

FLANGED BEARING,0.375"

bearing

8шт.

5

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

flat, 13/16 x 1-3/4 x 7/32 inch hardened

1шт.

6

232-41112

NUT,3/4"-10, GC

1шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

11

1326434C1

BAR

JACKSHAFT lower, auger drive

1шт.

11

1326888C1

SHAFT

JACKSHAFT lower, auger drive, 1482 combine

1шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

13

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

jackshaft

1шт.

14

23170R1

HEADED PIN,1/2" x 2 3/8"

clevis, 1/2 x 2-3/8 inch

1шт.

15

586591R1

COTTER PIN

hair, 1/8 inch

2шт.

16

1326436C1

SHAFT

jack, upper, auger drive

1шт.

17

575186R1

SNAP RING

retaining, internal

1шт.

20

24475R1

SPACER

1-1/4 x 1-3/8 inch

1шт.

21

1326435C1

SPROCKET ASSY.

23 tooth, jackshaft

2шт.

22

675156R1

SPACER,1 1/4" Tube x 7/8"

1-1/4 x 7/8 inch, if equipped

1шт.

23

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY jackshaft drive, Use 47 links from bulk chain 1355D, and 1 connecting link 241-432

1шт.

1355D

CHAIN (AG)

bulk, 10 foot roll, No. 60H-2

1шт.

241-4326

LINK,19.05mm Pitch

connecting, single pitch, No. 60H-2, 3/4 inch pitch

1шт.

24

1326437C1

SPROCKET ASSY.

15 tooth, idler

1шт.

25

100-21206

SNAP RING,2.062", Int, #206

2шт.

26

180302C91

BALL BEARING,22.28mm Hex x 52mm OD x 25.4mm W

sprocket

2шт.

27

1326438C1

SHAFT

idler

1шт.

28

232-5318

FLANGE NUT,Flg, 1/2"-13

hex flange, self locking, 1/2 inch NC

2шт.

33

1326450C2

SHIELD

jackshaft drive

1шт.

34

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

2шт.

35

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

36

1326430C2

SUPPORT

upper jackshaft

1шт.

37

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

hex, self locking, special, 3/8 NC x 1 inch

10шт.

39

1326899C1

SUPPORT

lower jackshaft, left-hand

1шт.

40

1326900C1

SUPPORT

lower jackshaft

1шт.

41

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 NC x 1-3/4 inch, if equipped

2шт.

42

603046R1

SPACER,3/8" X-Strng Pipe x 7/8"

pipe, 3/8 x 13/16 inch, if equipped

2шт.

43

1327106C1

COLLAR

shaft

1шт.

44

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

45

232-4136

LOCK NUT,3/8"-16, GC

1шт.
