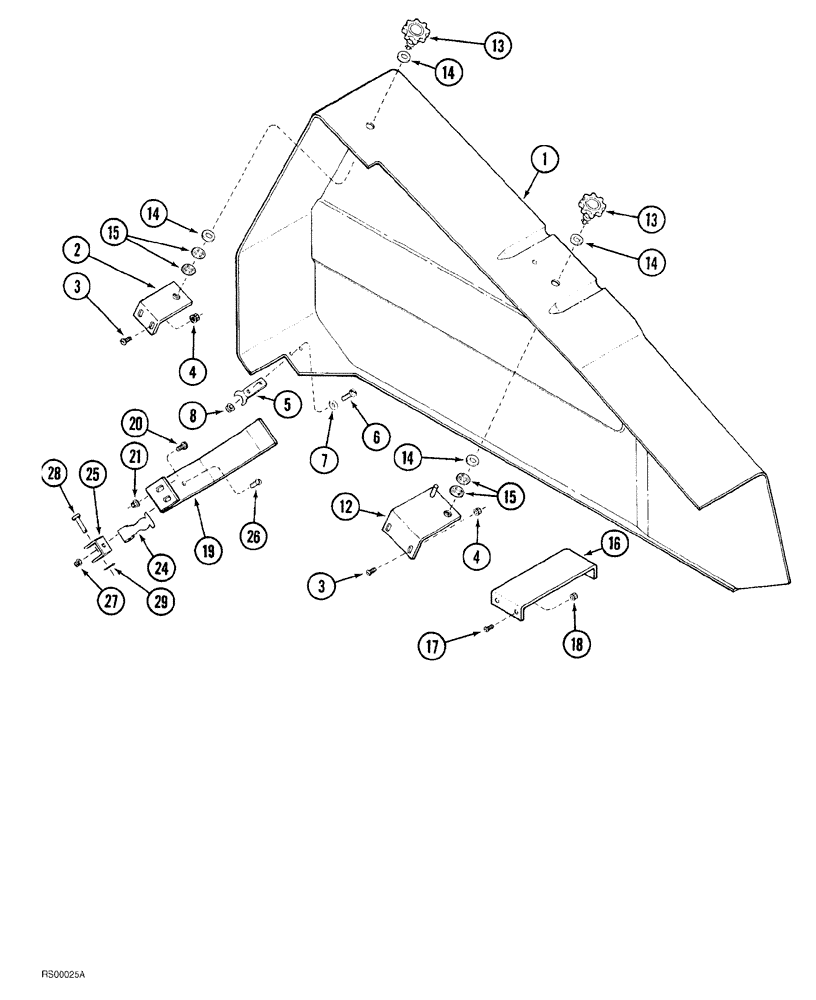

Запчасти Case IH 1015 (9-026) - AUGER DRIVE SHIELD (58) - ATTACHMENTS/HEADERS

1

1326348C2

GUARD

drive, left

1шт.

2

1316510C1

SUPPORT

shield, upper

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

3шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

5

764071C1

BRACKET

HOOK latch

1шт.

6

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

7

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

2шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

12

1326758C1

SUPPORT

shield, front

1шт.

13

1326408C2

STUD,25.4mm OD x 52.3mm L

fastener

2шт.

14

495-81023

WASHER,17/32" x 1 1/4" x .030"

flat, 17/32 x 1-1/4 x 1/32 inch

12шт.

15

1326407C1

RETAINER

stud

4шт.

16

1326420C1

SUPPORT

shield, lower front

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

18

231-5146

FLANGE NUT,3/8"-16

2шт.

19

1326410C1

SUPPORT

shield, lower rear

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

24

494307C1

LATCH

hold down, latch

1шт.

25

188103C1

BRACKET

BRACKET hook anchor

1шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

28

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

1шт.

29

432-816

COTTER PIN,1/8" x 1"

1шт.
