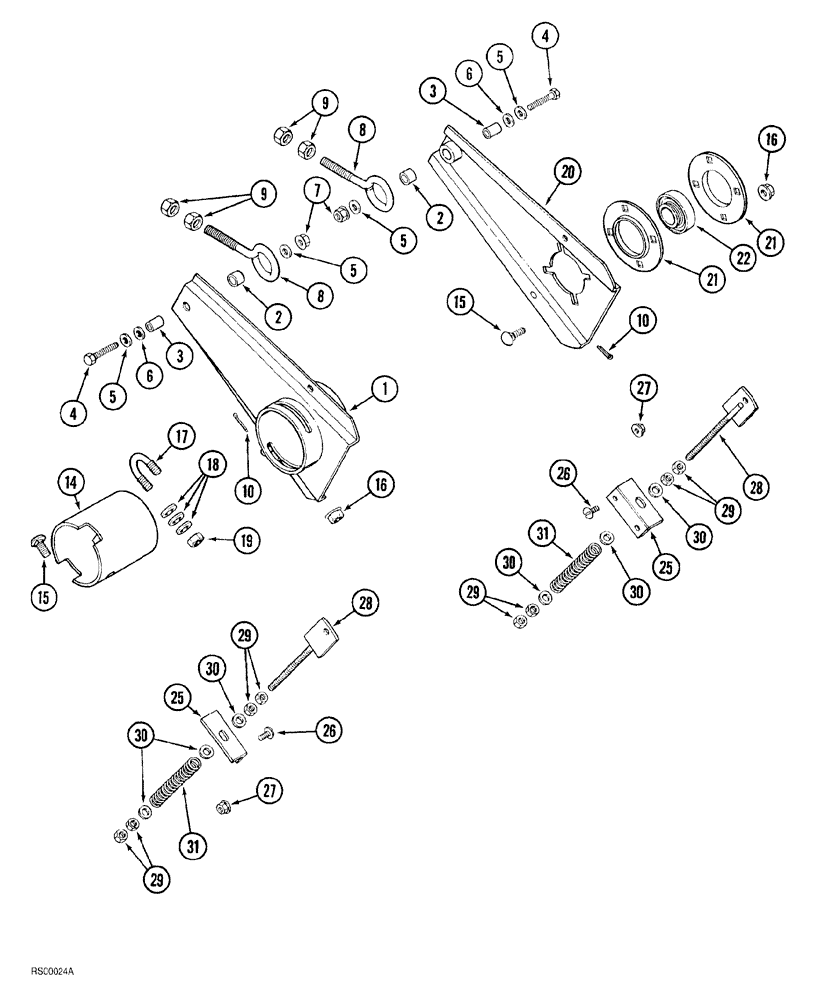

Запчасти Case IH 1015 (9-024) - AUGER SUPPORTS (58) - ATTACHMENTS/HEADERS

1

1308024C91

SUPPORT

BRACKET ASSEMBLY, auger, right, Includes Ref: 2

1шт.

2

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

auger bracket

1шт.

3

1968840C1

SPACER

3/4 O.D. x 1-1/16 inch

2шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

6

495-81256

WASHER,19.84mm ID x 28.57mm OD x 0.84mm Thk

flat, 25/32 x 1-1/8 x 3/64 inch

2шт.

7

232-5318

FLANGE NUT,Flg, 1/2"-13

hex flange, self locking, 1/2 inch NC

2шт.

8

1308451C1

U-BOLT

EYE, auger pivot

2шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

432-1218

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

2шт.

14

1320695C1

TUBE

finger adjusting, inner

1шт.

15

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

1шт.

17

1307195C2

U-BOLT,1/2" - 13 x 40.37mm W x 55mm L, Gr 8

1/2 inch NC

1шт.

18

232-5318

FLANGE NUT,Flg, 1/2"-13

hex flange, self locking, 1/2 inch NC

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

6шт.

19

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

20

1308023C91

SUPPORT

auger, left

1шт.

21

663562R1

FLANGE

bearing, alternate with 1307583C1, shown

2шт.

21

1307583C1

FLANGED BEARING

bearing, square, alternate with 663562R1

2шт.

22

664175R92

BALL BEARING,1.5005" ID x 80 mm OD x 1.1875"

ball

1шт.

25

1308204C1

SUPPORT

downstop

2шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

1316375C1

STEM

ROD auger adjustment

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

8шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

6шт.

31

PO104

VALVE SPRING

compression, auger adjusting

2шт.
