Запчасти Case IH 1015 (9-020) - AUGER (58) - ATTACHMENTS/HEADERS

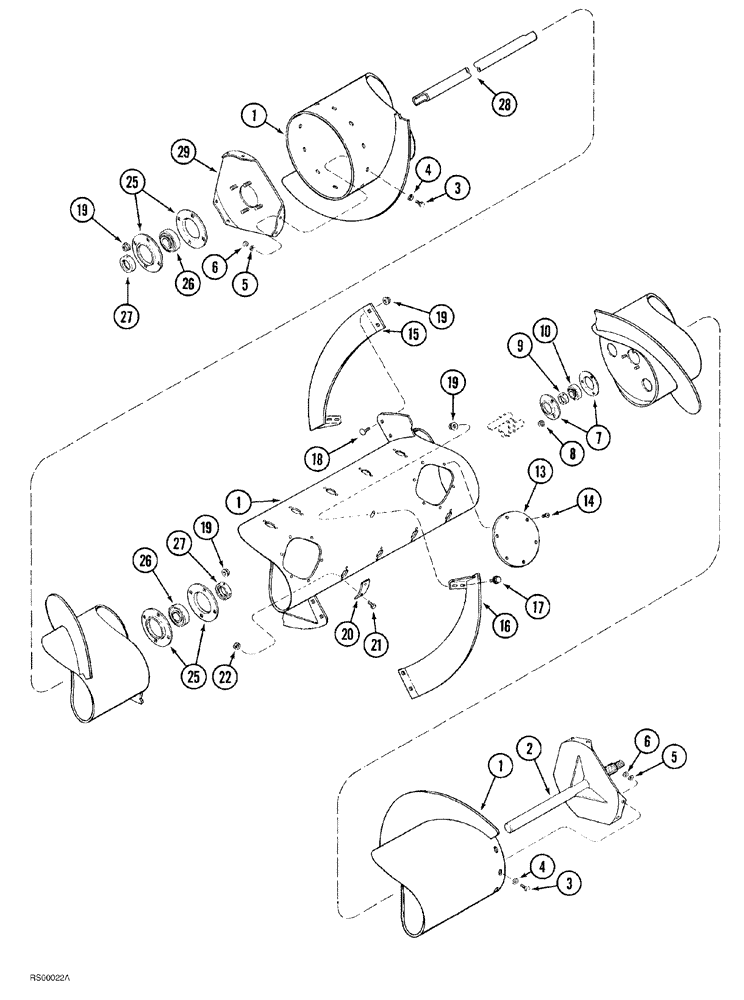

Схема запчастей Case IH 1015 - (9-020) - AUGER (58) - ATTACHMENTS/HEADERS
2
25
27
22
16
27
5
19
1
9
8
4
5
19
15
17
29
4
19
14
20
18
28
10
3
1
3
26
6
7
6
25
21
1
19
13
26

Артикул

Название

Примечание

Количество

1

1316165C2

AUGER

header, 11 foot center discharge

1шт.

1

1307216C2

WORM

AUGER header, 11 foot offset discharge

1шт.

1

1320255C2

AUGER

header, 13 foot center discharge

1шт.

1

1320213C2

AUGER

header, 13 foot offset discharge

1шт.

2

181817C1

SHAFT

drive

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

12шт.

7

937517R1

FLANGE

bearing

2шт.

8

188471C1

FLANGE NUT,Flg, 5/16"-18

hex flange, self locking, 5/16 inch NC

3шт.

9

455102R21

COLLAR

locking, bearing, with set screw

1шт.

10

214366C91

BALL BEARING,25.40mm ID x 52mm OD

ball

1шт.

13

184505C1

COVER

handhole

2шт.

14

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self tapping, hex washer head, 1/4 NC x 1/2 inch

12шт.

15

1308445C2

EXTENSION

auger flight, left

1шт.

16

1308446C2

EXTENSION

EXTENSION auger flight, right

1шт.

17

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

hex serrated flange, 1/2 NC x 1 inch

2шт.

18

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

19

232-5318

FLANGE NUT,Flg, 1/2"-13

hex flange, self locking, 1/2 inch NC

1шт.

20

167823C1

COVER

finger hole

2шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

22

231-4144

NUT,1/4"-20, GB

4шт.

25

663562R1

FLANGE

bearing, alternate with 1307583C1, shown

4шт.

25

1307583C1

FLANGED BEARING

bearing, square, alternate with 663562R1

4шт.

26

664175R92

BALL BEARING,1.5005" ID x 80 mm OD x 1.1875"

ball

2шт.

27

455112R11

COLLAR

locking, bearing, with set screw

2шт.

28

1316385C1

TUBE,38.087 mm OD, 1226.3 mm Length

adjusting, 11 foot center discharge

1шт.

28

1307268C1

TUBE,38.087 mm Diameter, 1650.2 mm Length

adjusting, 11 foot offset discharge

1шт.

28

1320259C1

TUBE,38.087 mm OD, 1505.7 mm Length

adjusting, 13 foot center discharge

1шт.

28

1316386C1

TUBE,38.087 mm OD, 2209 mm Length

adjusting, 13 foot offset discharge

1шт.

29

1307256C1

RETAINER

RETAINER auger, right

1шт.

Выбрано товаров: 32
