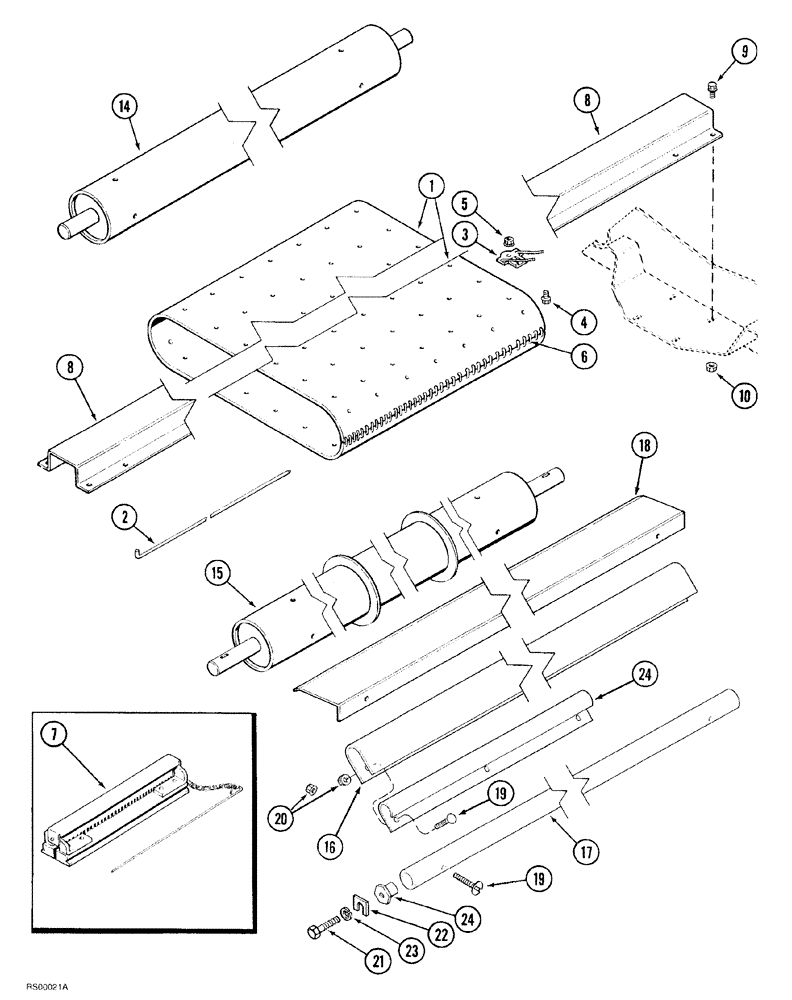

Запчасти Case IH 1015 (9-018) - CONVEYOR BELT, 51 TOOTH PICK UP (58) - ATTACHMENTS/HEADERS

1

1977190C1

CONVEYOR BELT

Assy, Pickup, 51 tooth, 11 foot header uses 6 belts, 13 foot header uses 7 belts, Includes Ref 2-6

1шт.

2

176887C2

ELECTRICAL WIRE

WIRE belt lacing

1шт.

3

176888C1

TOOTH

pickup

51шт.

4

176889C1

BOLT,Elevator, Flat Hd, 1/4" - 20 x 19.05mm

plow, 1/4 NC x 3/4 inch

51шт.

5

231-5344

FLANGE NUT,Flg, 1/4"-20

51шт.

6

567631R93

LACING

HOOK KIT, conveyor belt lacing, package of 760 hooks

1шт.

7

1316490C1

TOOL

conveyor belt lacing

1шт.

8

1313503C1

SUPPORT

cross, 11 foot

1шт.

8

1320227C1

SUPPORT

cross, 13 foot

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

10

473371R1

FLANGE NUT

hex flange lock, 3/8 inch NC

8шт.

14

1316758C4

ROLLER

upper, 11 foot

1шт.

14

1316759C4

ROLL

upper, 13 foot

1шт.

15

1316760C4

ROLL

lower, 11 foot

1шт.

15

1316761C4

ROLL

lower, 13 foot

1шт.

16

1305719C3

SEALING STRIP

front, 11 foot

1шт.

16

1320220C3

SEALING STRIP,5mm Thk

front, 13 foot

1шт.

17

1968855C1

TUBE

pickup stripper, 11 foot, if equipped

1шт.

17

1968856C1

TUBE

pickup stripper, 13 foot, if equipped

1шт.

18

1316792C2

SUPPORT

front shield, 11 foot, if equipped

1шт.

18

1316793C2

SUPPORT

front shield, 13 foot, if equipped

1шт.

19

133192

BRACKET

round head, 3/8 NC x 2-1/2 inch

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

If equipped

2шт.

22

199408C1

SHIM,28mm OD x 1mm Thk

0.032 inch

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

If equipped

2шт.

24

1326897C1

SUPPORT

stripper upper, 13 foot

6шт.

24

1326897C1

SUPPORT

stripper upper, 13 foot

7шт.

25

1968752C1

UNION

SUPPORT stripper tube end

2шт.

26

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

hex, self locking, special, 3/8 NC x 1 inch

1шт.
