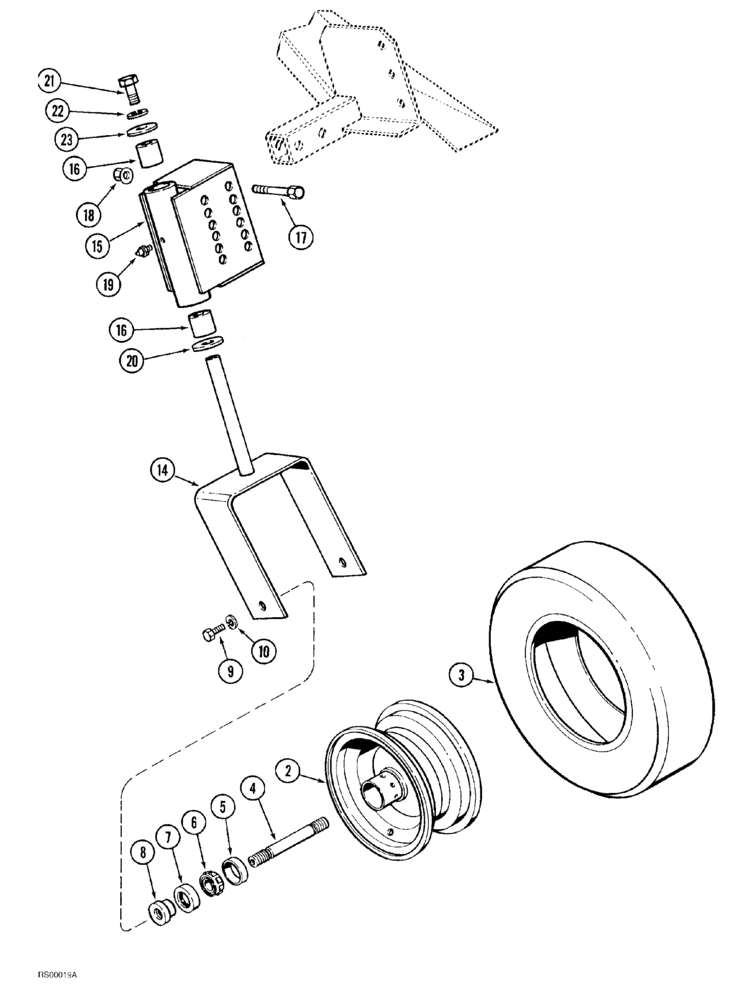

Запчасти Case IH 1015 (9-014) - GAUGE WHEEL (58) - ATTACHMENTS/HEADERS

1313577C93

WHEEL

ASSEMBLY, gauge, Includes Ref: 2, 5-7 (Shaft not included)

2шт.

2

1326770C1

WHEEL

gauge

1шт.

3

NSS

NOT SOLD SEPARAT

TIRE gauge wheel, 4 ply tubeless, order 1313577C91

1шт.

4

1326772C1

AXLE

AXLE wheel

1шт.

5

651814R1

BEARING CUP

tapered roller

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

542217R91

OIL SEAL,28.57mm ID x 45.34mm OD x 11.91mm Thk

wheel

2шт.

8

1326771C1

NUT

seal

2шт.

9

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

hex, 1/2 NF x 1 inch

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

1316542C1

CLEVIS

YOKE gauge wheel

2шт.

15

1316546C91

PIVOT ASSY.

gauge wheel, Includes Ref: 16

2шт.

16

1326365C1

BUSHING

wheel pivot

1шт.

17

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch

4шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

20

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

Hardened

2шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

1326368C1

WASHER

flat, 13 x 54 x 6 mm

2шт.
