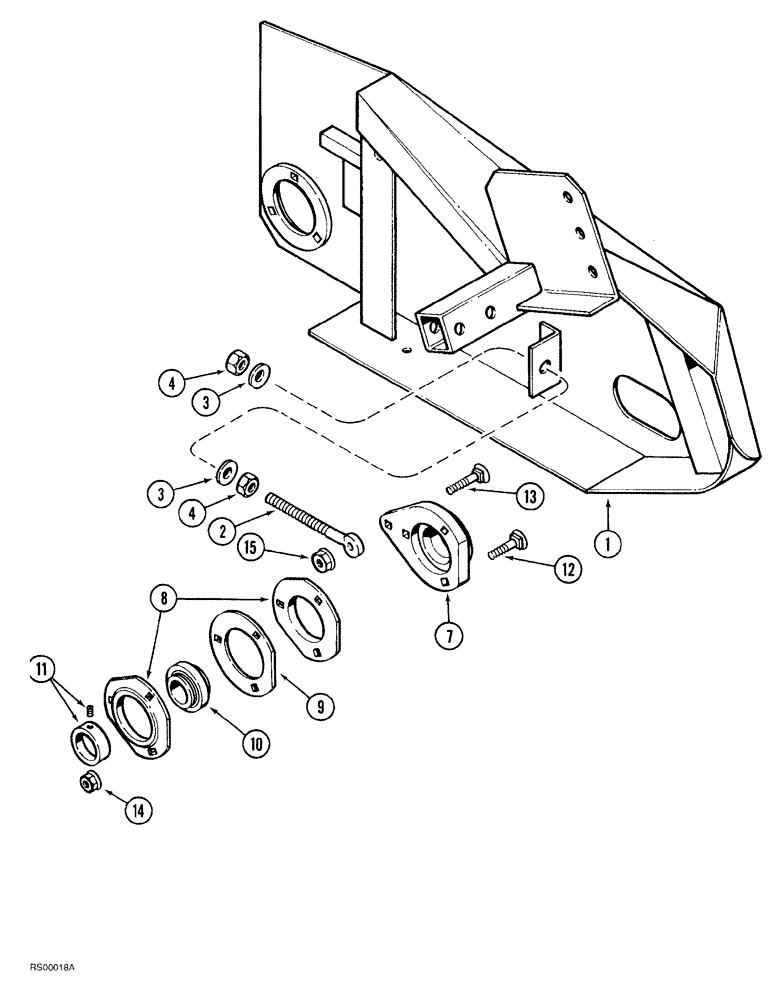

Запчасти Case IH 1015 (9-012) - GAUGE WHEEL SUPPORT (58) - ATTACHMENTS/HEADERS

1

1316551C2

SUPPORT

gauge wheel, right hand, shown

1шт.

1

1316550C2

SUPPORT

gauge wheel, left hand

1шт.

2

1326456C1

BOLT,5/8" - 11 x 140mm

BOLT, EYE belt tightener

2шт.

3

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

7

176900C2

RETAINER

RETAINER lower roller

2шт.

8

571425R1

FLANGED BEARING

bearing

8шт.

9

176935C1

SHIM

bearing

8шт.

10

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

ball

4шт.

11

557995R11

COLLAR

bearing, with set screw

4шт.

12

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

plow, 3/8 NC x 1-1/2 inch

6шт.

13

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

plow, 7/16 NC x 1-3/4 inch, Grade 8

2шт.

14

231-5146

FLANGE NUT,3/8"-16

6шт.

15

1313463C1

FLANGE NUT

hex small flange lock, 7/16 inch NC

2шт.
