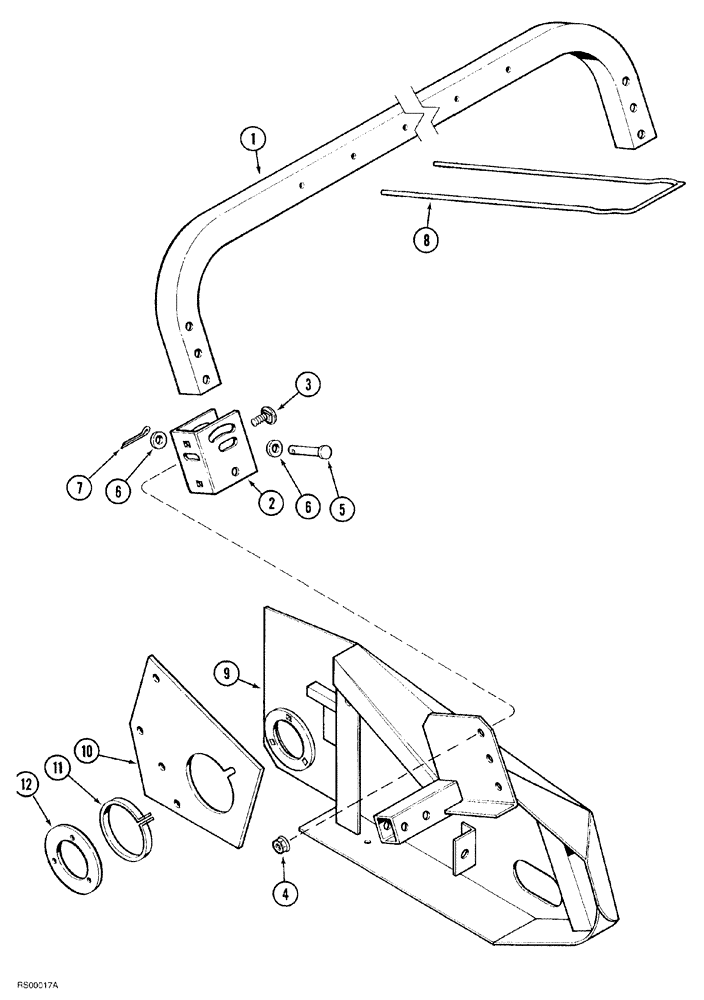

Запчасти Case IH 1015 (9-010) - HEADER DEFLECTOR (58) - ATTACHMENTS/HEADERS

1

1313505C1

FRAME

deflector, 11 foot

1шт.

1

1320234C1

FRAME

deflector, 13 foot

1шт.

2

176976C2

SUPPORT TUBE

deflector pivot

2шт.

3

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

carriage, 1/2 NC x 1-1/4 inch

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

147404C1

PIN,12.7mm OD x 83mm L

clevis, 1/2 x 3-1/4 inch

2шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

7

432-1216

COTTER PIN,3/16" x 1"

2шт.

8

176972C2

FINGER

deflector

1шт.

9

1316551C2

SUPPORT

gauge wheel, right hand

1шт.

10

1316790C1

LARGE PLATE

PLATE, LARGE support

2шт.

11

179399C1

BAND

pivot

2шт.

12

176908C1

RETAINER

RETAINER support

2шт.
