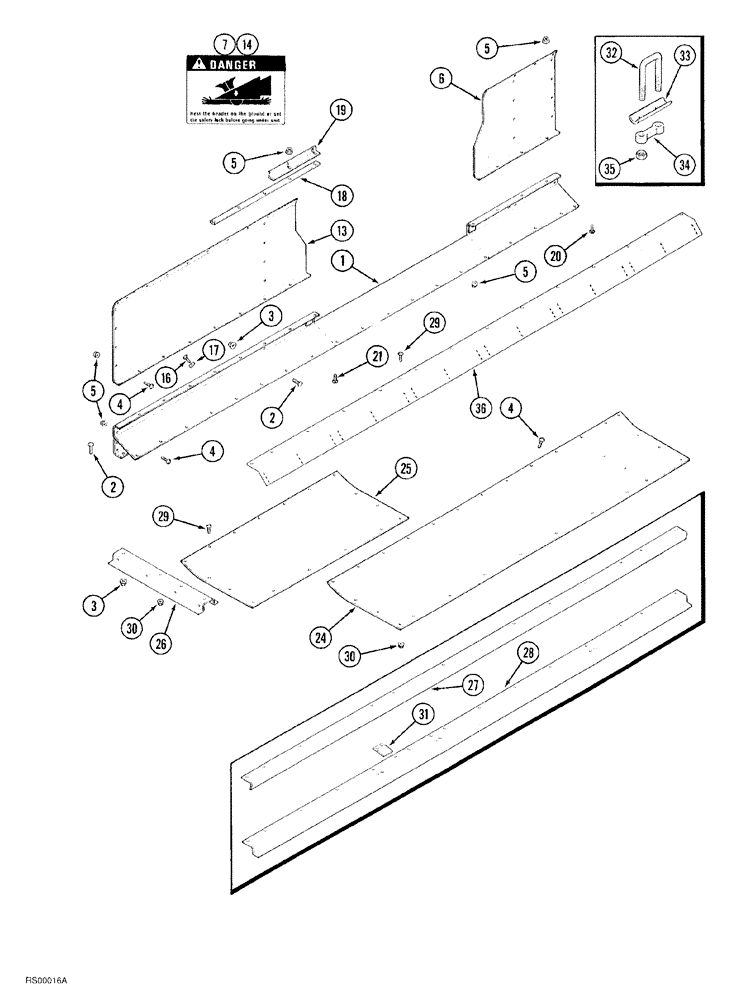

Запчасти Case IH 1015 (9-008) - LOWER MAIN FRAME, OFFSET DISCHARGE (58) - ATTACHMENTS/HEADERS

1

1305608C1

FRAME

lower main, 11 foot

1шт.

1

1320228C1

BEAM ASSY.

FRAME lower main, 13 foot

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

1326069C91

SHIELD

SHEET ASSEMBLY, left hand rear, 11 and 13 foot, Includes Ref: 7

1шт.

7

REF

INSTRUCTION

DECAL danger, rest header on ground, See Fig. 9-48

1шт.

13

1326070C91

SHEET

ASSEMBLY, right hand rear, 11 foot, Includes: Ref. 14

1шт.

13

1326071C91

SHEET

ASSEMBLY, right hand rear, 13 foot, Includes Ref: 14

1шт.

14

REF

INSTRUCTION

DECAL, danger, rest header on ground, See Fig. 9-48

1шт.

16

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

self tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

17

495-81120

WASHER,.344" x 1 1/4" x .120"

flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

18

189825C2

STRIPPER

auger stripper

1шт.

19

1316564C1

ANGLE

stripper extension

2шт.

20

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

24

1316209C1

SHEET

SUPPORT bottom left hand, 11 foot

1шт.

24

1316336C1

SHEET

SUPPORT bottom left hand, 13 foot

1шт.

25

1316210C1

SHEET

SUPPORT bottom right hand, 11 foot

1шт.

25

1316211C1

SHEET

SUPPORT bottom right hand, 13 foot

1шт.

26

1305621C1

SUPPORT

channel

2шт.

27

1305626C3

ANGLE

BRACKET front support angle, 11 foot, if equipped

1шт.

27

1320225C3

ANGLE

BRACKET front support angle, 13 foot, if equipped

1шт.

28

1968641C2

ANGLE

front support, 13 foot, if equipped

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

1957389C1

SUPPORT

pickup stripper, if equipped

2шт.

32

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" feeder latch

2шт.

33

1307370C1

SUPPORT

feeder latch U-bolt, if equipped

2шт.

34

1307371C1

LATCH

BAR feeder latch

2шт.

35

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

4шт.

36

1326895C1

SUPPORT

angle lower stripper, 11 foot

1шт.

36

1326896C1

BAR

SUPPORT angle lower stripper, 13 foot

1шт.
