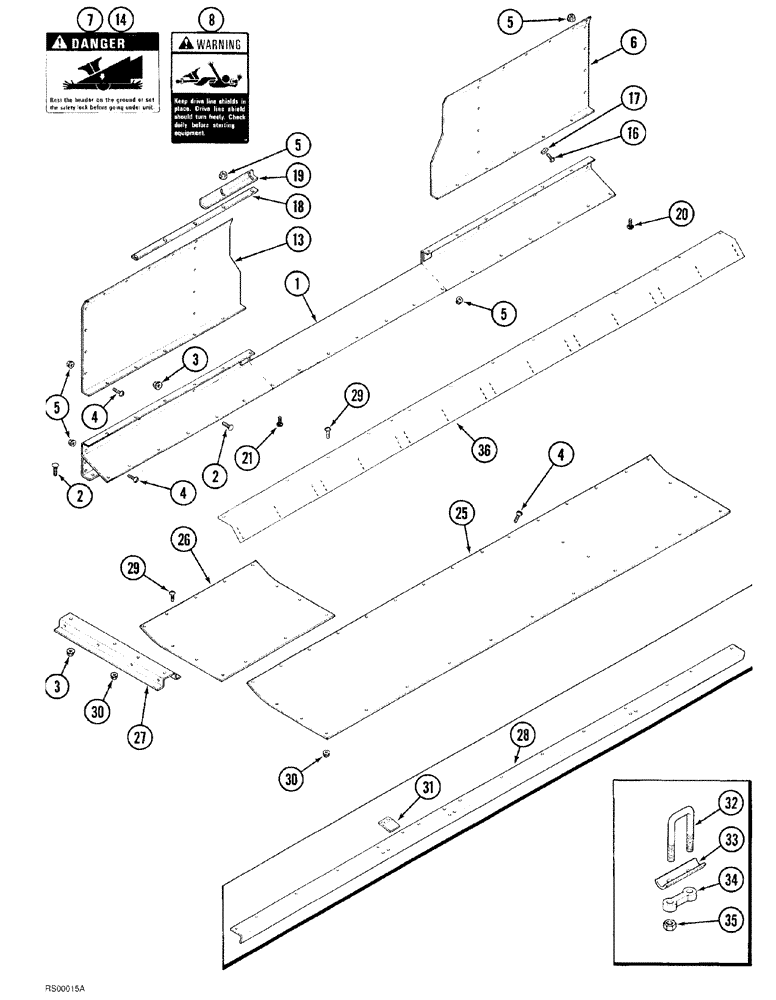

Запчасти Case IH 1015 (9-006) - LOWER MAIN FRAME, CENTER DISCHARGE (58) - ATTACHMENTS/HEADERS

1

1316184C1

FRAME

lower main, 11 foot

1шт.

1

1320246C1

FRAME

lower main, 13 foot

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

6

1326065C91

SHEET

ASSEMBLY, left hand rear, 11 foot, Includes: Ref. 7, 8

1шт.

6

1326067C91

SHEET

ASSEMBLY, left hand rear, 13 foot, Includes Ref: 7, 8

1шт.

7

REF

INSTRUCTION

DECAL danger, rest header on ground, See Fig. 9-48

1шт.

8

REF

INSTRUCTION

DECAL warning, rotating drive shields, See Fig. 9-48

1шт.

13

1326066C91

SHEET

ASSEMBLY, right hand rear, 11 foot, Includes: Ref. 14

1шт.

13

1326068C91

SHEET

ASSEMBLY, right hand rear, 13 foot, Includes Ref: 14

1шт.

14

REF

INSTRUCTION

DECAL danger, rest header on ground, See Fig. 9-48

1шт.

16

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

self tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

17

495-81120

WASHER,.344" x 1 1/4" x .120"

flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

18

189825C2

STRIPPER

auger stripper

2шт.

19

1316564C1

ANGLE

stripper extension

2шт.

20

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

25

1316207C1

SUPPORT

bottom left hand, 11 foot

1шт.

25

1316212C1

SUPPORT

bottom left hand, 13 foot

1шт.

26

1316208C1

SUPPORT

bottom right hand, 11 foot

1шт.

26

1316213C1

SUPPORT

bottom right hand, 13 foot

1шт.

27

1305621C1

SUPPORT

channel

2шт.

28

1305626C3

ANGLE

BRACKET front support angle, 11 foot

1шт.

28

1320225C3

ANGLE

BRACKET front support angle, 13 foot

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

1957389C1

SUPPORT

pickup stripper, if equipped

2шт.

32

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U" feeder latch

2шт.

33

1307370C1

SUPPORT

feeder latch U-bolt, if equipped

2шт.

34

1307371C1

LATCH

BAR feeder latch

2шт.

35

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

4шт.

36

1326895C1

SUPPORT

angle lower stripper, 11 foot

1шт.

36

1326896C1

BAR

SUPPORT angle lower stripper, 13 foot

1шт.
