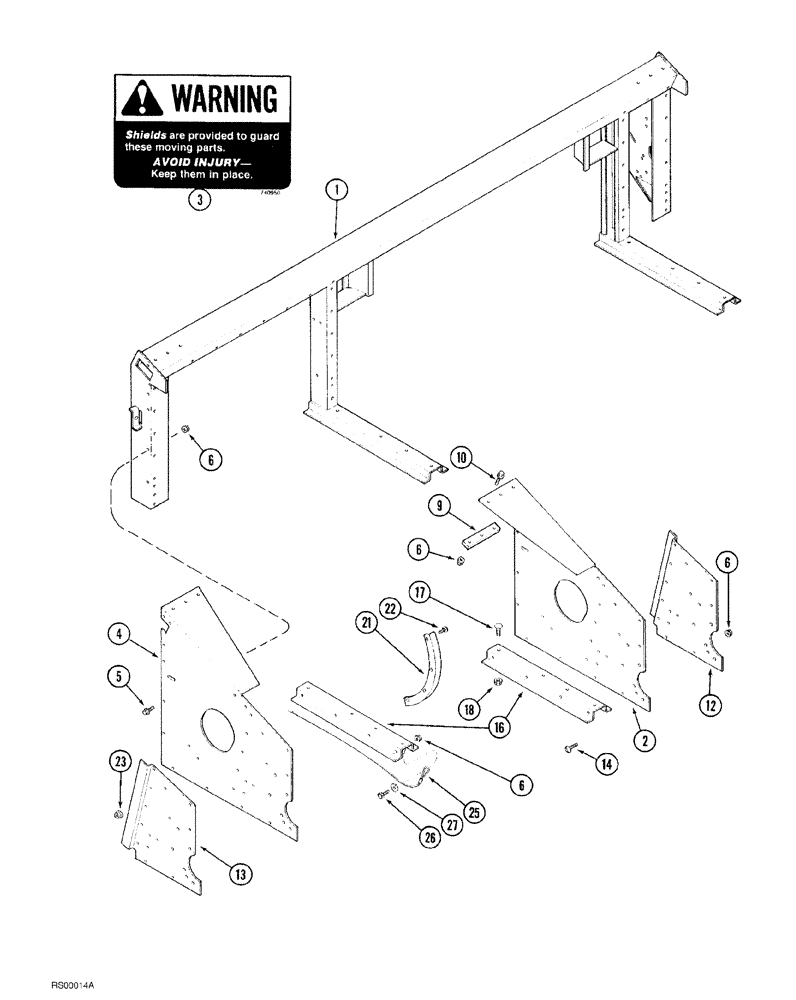

Запчасти Case IH 1015 (9-004) - UPPER MAIN FRAME, OFFSET DISCHARGE (58) - ATTACHMENTS/HEADERS

1

1305596C2

BEAM

FRAME upper main, 11 foot offset, Replaces 1305596C1

1шт.

1

1320232C2

BEAM

FRAME upper main, 13 foot offset, Replaces 1320232C1

1шт.

2

1326055C91

SUPPORT

ASSEMBLY, frame, left hand, Includes Ref: 3

1шт.

3

REF

INSTRUCTION

DECAL warning, keep shields in place, See Fig. 9-48

1шт.

4

1308093C2

SUPPORT

frame, right

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

15шт.

6

231-5146

FLANGE NUT,3/8"-16

39шт.

9

1313966C1

BAR

shim

2шт.

10

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

12

1308218C2

SUPPORT

stiffener, left hand

1шт.

13

1308219C2

SUPPORT

stiffener, right hand

1шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

18шт.

16

1305621C1

SUPPORT

channel

2шт.

17

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

2шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

1323528C91

PACKAGE

angle, auger end shield, Includes Ref: 21, 22, 23

1шт.

21

1307704C1

ANGLE BAR

auger end shield

2шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

25

1968908C1

CABLE

ground

1шт.

26

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

27

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

1шт.
