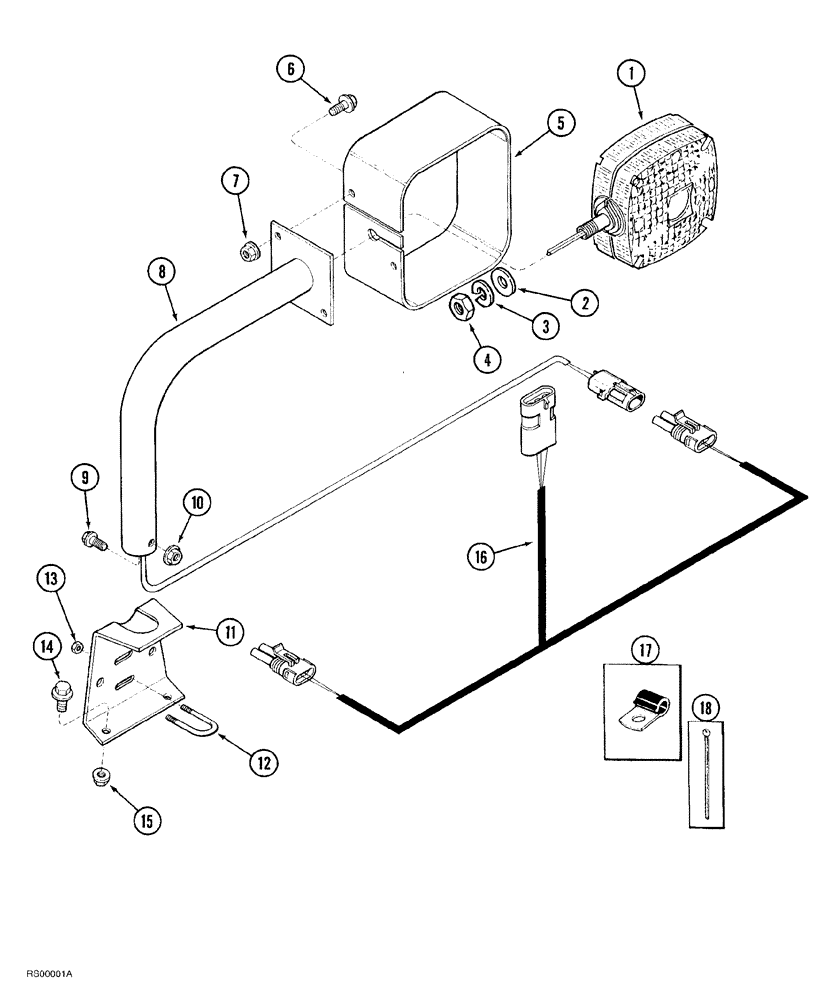

Запчасти Case IH 1015 (4-002) - SAFETY LIGHTING (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

LIGHT ASSEMBLY, warning, (See Fig. 4-4)

2шт.

2

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-118

NUT,1/2"-20, G5

2шт.

5

126890A1

SHIELD

marker light

2шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

127031A1

SUPPORT

marker light

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

11

127057A1

SUPPORT

ANGLE marker light

2шт.

12

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

support mounting

2шт.

13

231-4215

LOCK NUT,5/16"-18, GB

Hex, self locking

4шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

141779A1

HARNESS

marker lights

1шт.

17

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

P-type

2шт.
