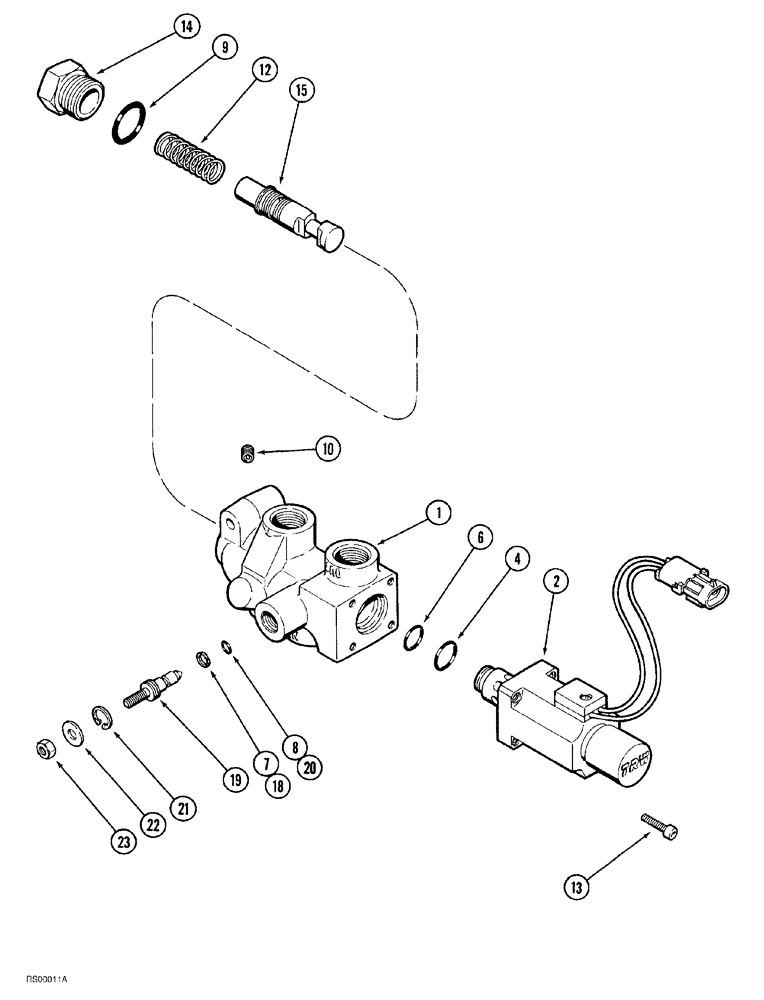

Запчасти Case IH 1015 (8-018) - SPEED CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1272619C92

VALVE

ASSEMBLY, hydraulic, order 1272619C93, Includes Ref: 1-23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

92669C1

SWITCH

SOLENOID valve, Includes: Ref. 4 and 6, order 92669C2

1шт.

92671C1

KIT

service, valve, small parts, Includes Ref: 4-14

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 92671C1 Solenoid

1шт.

7

G108725

BACK-UP RING

1шт.

8

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

ORIFICE valve

2шт.

12

115467A1

SPRING

spool

1шт.

13

62-3108

HEX SOC SCREW,#10 - 32 x 1/2"

hex socket, No. 10 NF x 1/2 inch

4шт.

14

115468A1

CAP

PLUG hex, special

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

92670C1

KIT

service, manual override, Includes Ref: 18-23

1шт.

18

G108725

BACK-UP RING

1шт.

19

NSS

NOT SOLD SEPARAT

PINTLE override

1шт.

20

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

21

L31750

CIRCLIP,0.562", Int, #56

0.562", Int, #56

1шт.

22

107969A1

WASHER

flat, special

1шт.

23

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 92671C1 Solenoid

1шт.
