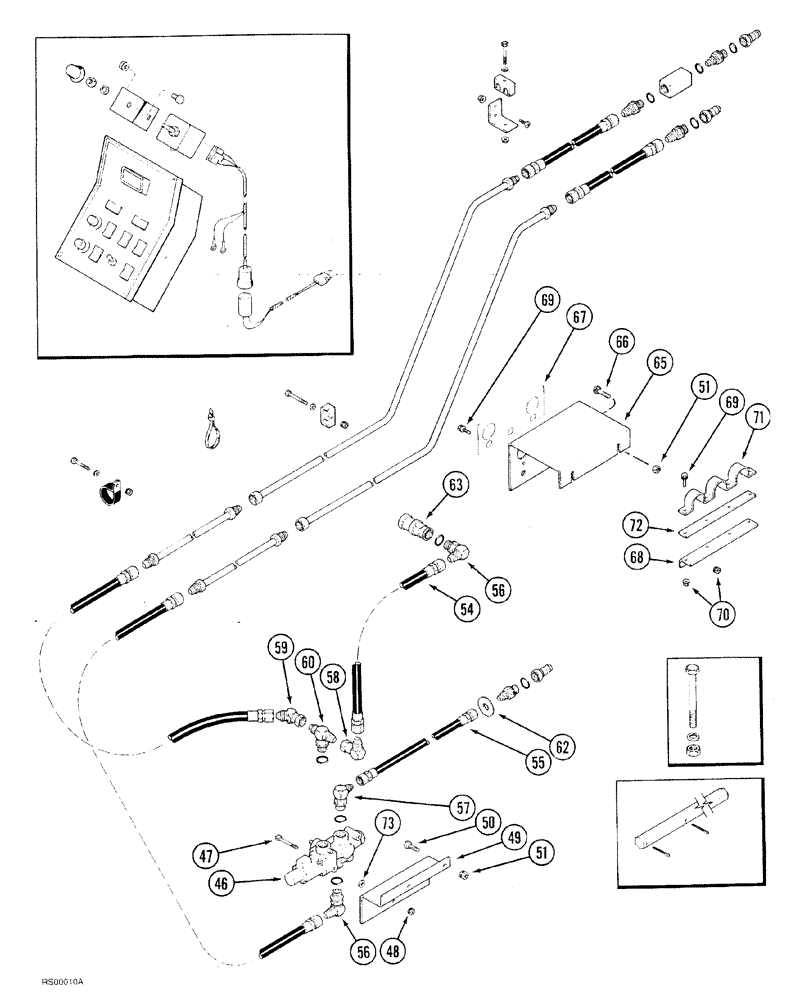

Запчасти Case IH 1015 (8-016) - HEADER ADAPTER ATTACHMENT (CONTINUED) (35) - HYDRAULIC SYSTEMS

1968694C1

KIT

ADAPTER ATTACHMENT 1015 grain header to 1482 combine, Includes Ref: 46-73

1шт.

46

REF

INSTRUCTION

VALVE ASSEMBLY, speed control, See Fig. 8-18 or 8-20

1шт.

47

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

49

1324918C2

SUPPORT

speed control valve

1шт.

50

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

51

231-5146

FLANGE NUT,3/8"-16

1шт.

54

1327789C1

HOSE

1/2 ID x 12 inch

1шт.

55

1327580C1

HOSE

3/8 ID x 41 inch

1шт.

56

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

2шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

1шт.

58

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

59

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

60

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj. O-ring branch x flare x flare

1шт.

62

1345266C1

WASHER

lock, white, special, Replaces 1327632C1

1шт.

63

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch

1шт.

65

1321988C2

SUPPORT

feeder coupling

1шт.

66

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

67

1330614C1

PRODUCT GRAPHIC

DECAL drive return, See Fig. 9-48

1шт.

68

1321989C2

SUPPORT

coupling, Replaces 1321989C1

1шт.

69

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

hex flange, 1/4 NC x 3/4 inch

6шт.

70

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

71

1321990C1

CLAMP

coupling

1шт.

72

1327582C1

PLATE

SPACER coupling clamp

1шт.

73

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch

2шт.
