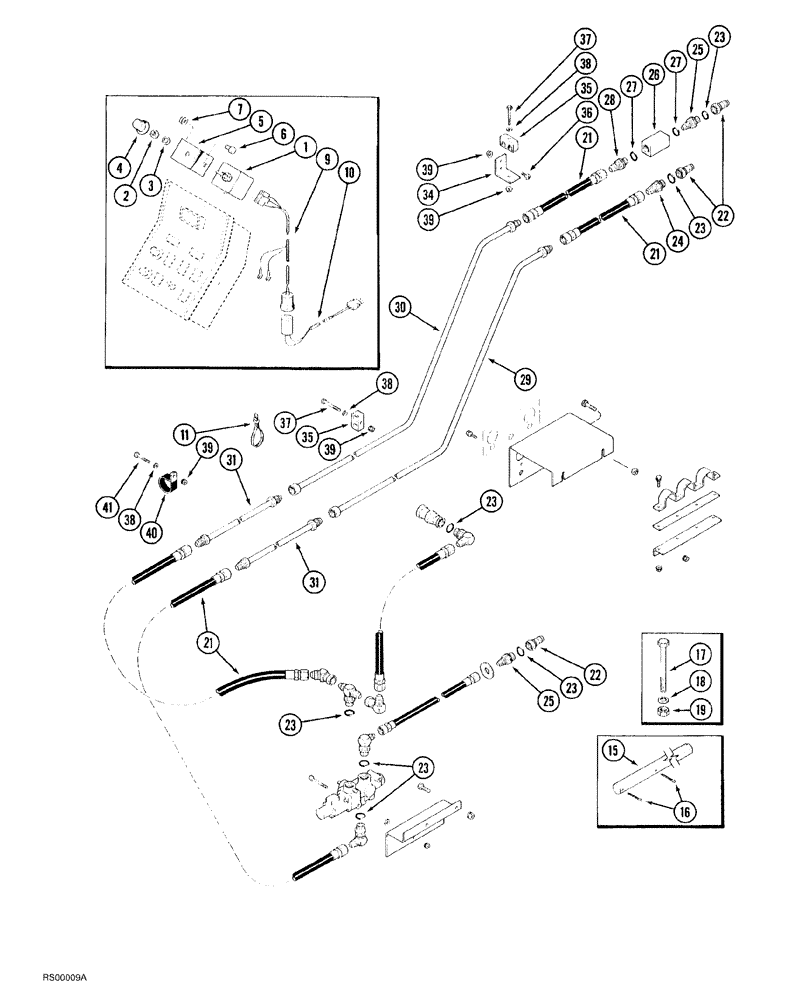

Запчасти Case IH 1015 (8-014) - HEADER ADAPTER ATTACHMENT (35) - HYDRAULIC SYSTEMS

1968694C1

KIT

ADAPTER ATTACHMENT, 1015 grain header to 1482 combine, Includes Ref: 1-41

1шт.

1

245653C2

SWITCH

pickup speed, Includes Ref: 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

NUT panel, hex

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER lock, internal tooth

1шт.

4

1345235C1

BUTTON

KNOB control

1шт.

5

1968595C1

SUPPORT

mounting, speed control

1шт.

6

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

1964591C1

HARNESS

wiring, speed control, front

1шт.

10

1964592C1

HARNESS

wiring, speed control, rear

1шт.

11

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch

1шт.

15

1326888C1

SHAFT

JACK lower, auger drive

1шт.

16

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

17

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

18

492-11062

BEARING WASHER,5/8"

1шт.

19

425-1010

NUT,5/8"-11, G5

1шт.

21

1327823C1

HOSE

1/2 ID x 66 inch

4шт.

22

1272399C2

QUICK MALE COUPLING

self sealing male, 7/8 inch NF threads, ISO standard

3шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

1шт.

25

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

26

1304235C1

VALVE

check

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

28

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight

1шт.

29

1330580C1

HYD TUBE

pressure, front

1шт.

30

1330581C1

HYD TUBE

return, front

1шт.

31

1330230C2

TUBE

rear

2шт.

34

1968622C1

SUPPORT

tube clamp

1шт.

35

1330242C1

CLAMP

CLAMP tube, 5/8 inch double

4шт.

36

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

37

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

38

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

39

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

40

27843R1

CLAMP

1-3/4 inch

1шт.

41

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex, 1/4 NC x 1-3/4 inch

1шт.
