(8-012) - HYDRAULIC SELF SEALING COUPLINGS

Запчасти Case IH 1015 (8-012) - HYDRAULIC SELF SEALING COUPLINGS (35) - HYDRAULIC SYSTEMS

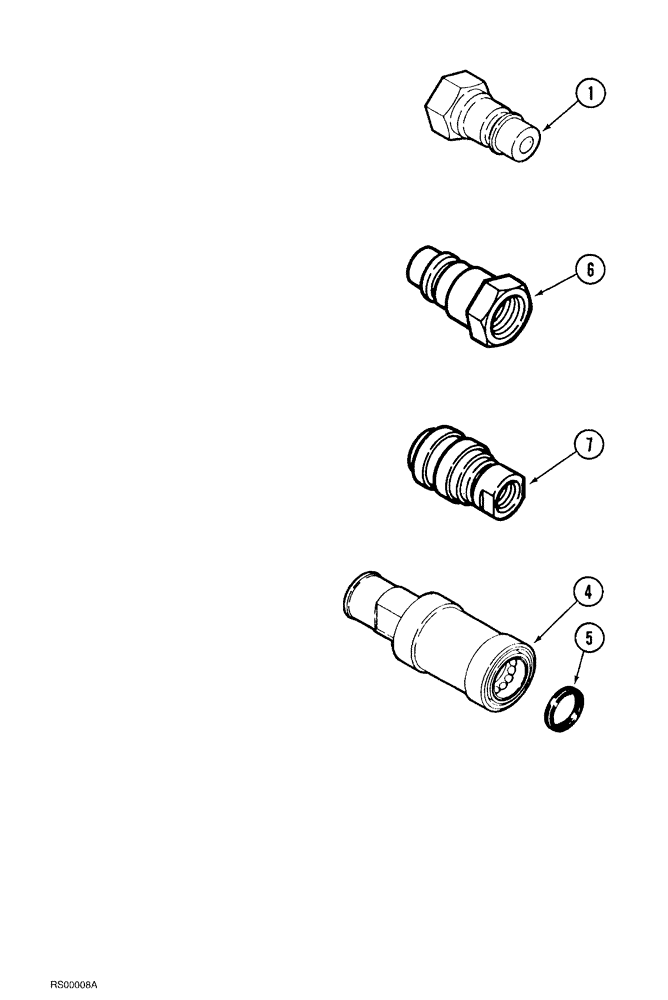

Схема запчастей Case IH 1015 - (8-012) - HYDRAULIC SELF SEALING COUPLINGS (35) - HYDRAULIC SYSTEMS
1
7
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1272399C2

QUICK MALE COUPLING

self sealing male, 7/8 inch NF threads (Alternate with 395149R1)

1шт.

4

1282338C91

COUPLING, QUICK, FEM

self sealing, 7/8-14 inch, Includes Ref: 5

1шт.

5

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

1шт.

6

1272399C2

QUICK MALE COUPLING

self sealing male, 7/8 inch NF threads

1шт.

7

187563C1

COUPLING, QUICK, FEM

female, 9/16-18 inch

1шт.

Выбрано товаров: 5
